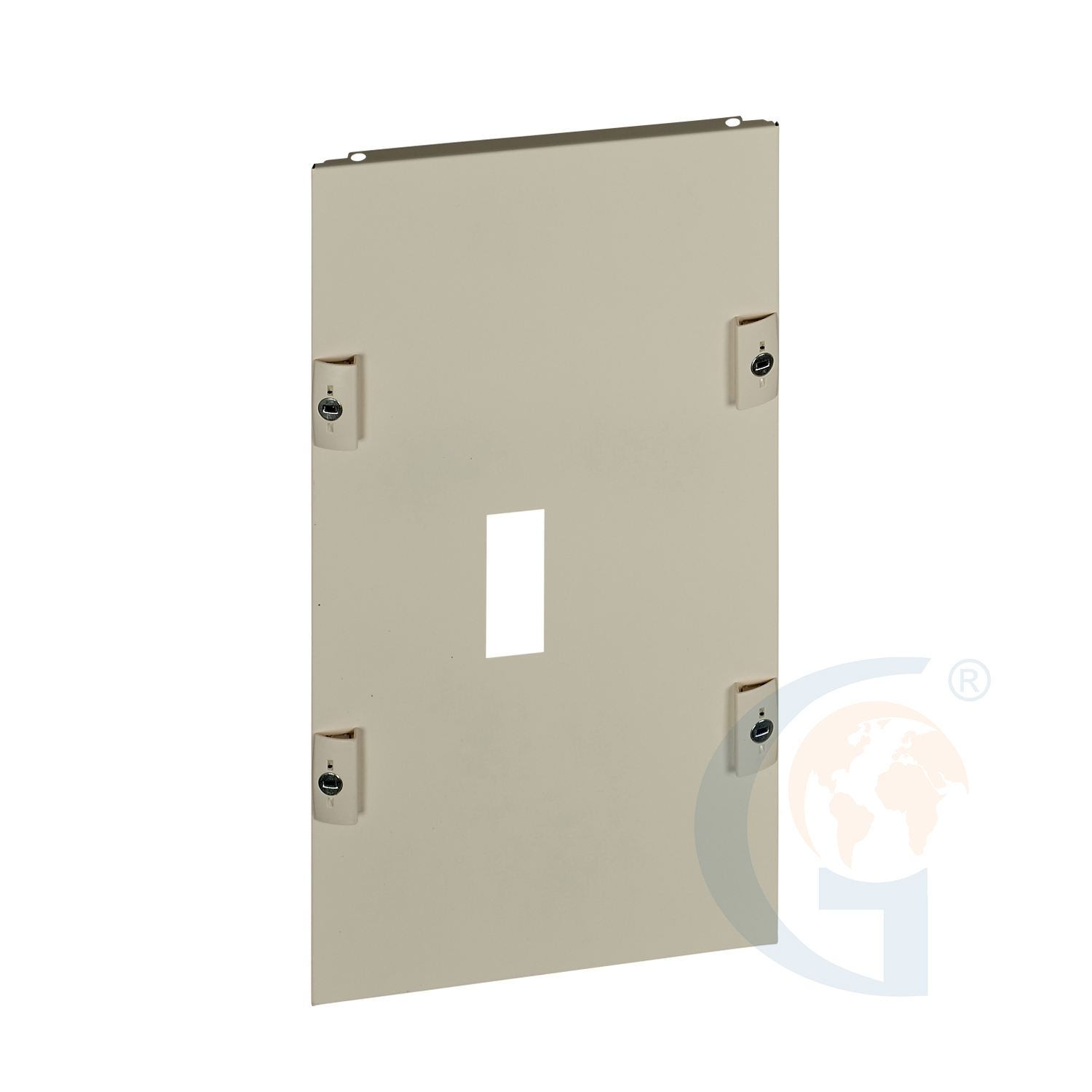

FRONT PLATE CVS250 VERTICAL FIXED TOGGLE W300 9M
Schneider Electric 03250 FRONT PLATE CVS250 VERTICAL FIXED TOGGLE W300 9M
Product information
Key Features
- range Prisma
- range compatibility Prisma G duct Prisma Pack 250
- IP degree of protection IP30
- product or component type Front plate
- accessory / separate part category Installation accessory
Schneider Electric
- Model #:
- 03250
- Part #:
- 03250
03250 Schneider Electric | BUY OR REPAIR
Overview
Low Voltage Products and Systems > Switchboards and Enclosures > Panel building systems > Prisma G > 03250
Features
- range Prisma
- range compatibility Prisma G duct Prisma Pack 250
- IP degree of protection IP30
- product or component type Front plate
- accessory / separate part category Installation accessory
- type of front plate Cut-out
- installed device Easypact: fixed CVS100...160 without earth leakage protection - control: toggle - vertical installation Easypact: fixed CVS250 without earth leakage protection - control: toggle - vertical installation
- poles description 1 x 3P: mounting plate support: CVS100...160 vertical installation 1 x 4P: mounting plate support: CVS100...160 vertical installation 1 x 3P: mounting plate support: CVS250 vertical installation 1 x 4P: mounting plate support: CVS250 vertical installation
- operating position Vertical
- enclosure/cubicle description Floor-standing duct - width 300 mm Wall-mounted duct - width 300 mm Pack enclosure - width 300 mm
- connection position Direct connection
- number of vertical modules [50 mm] 9
- standards IEC 61439-1 IEC 61439-2
- product certifications ASEFA
