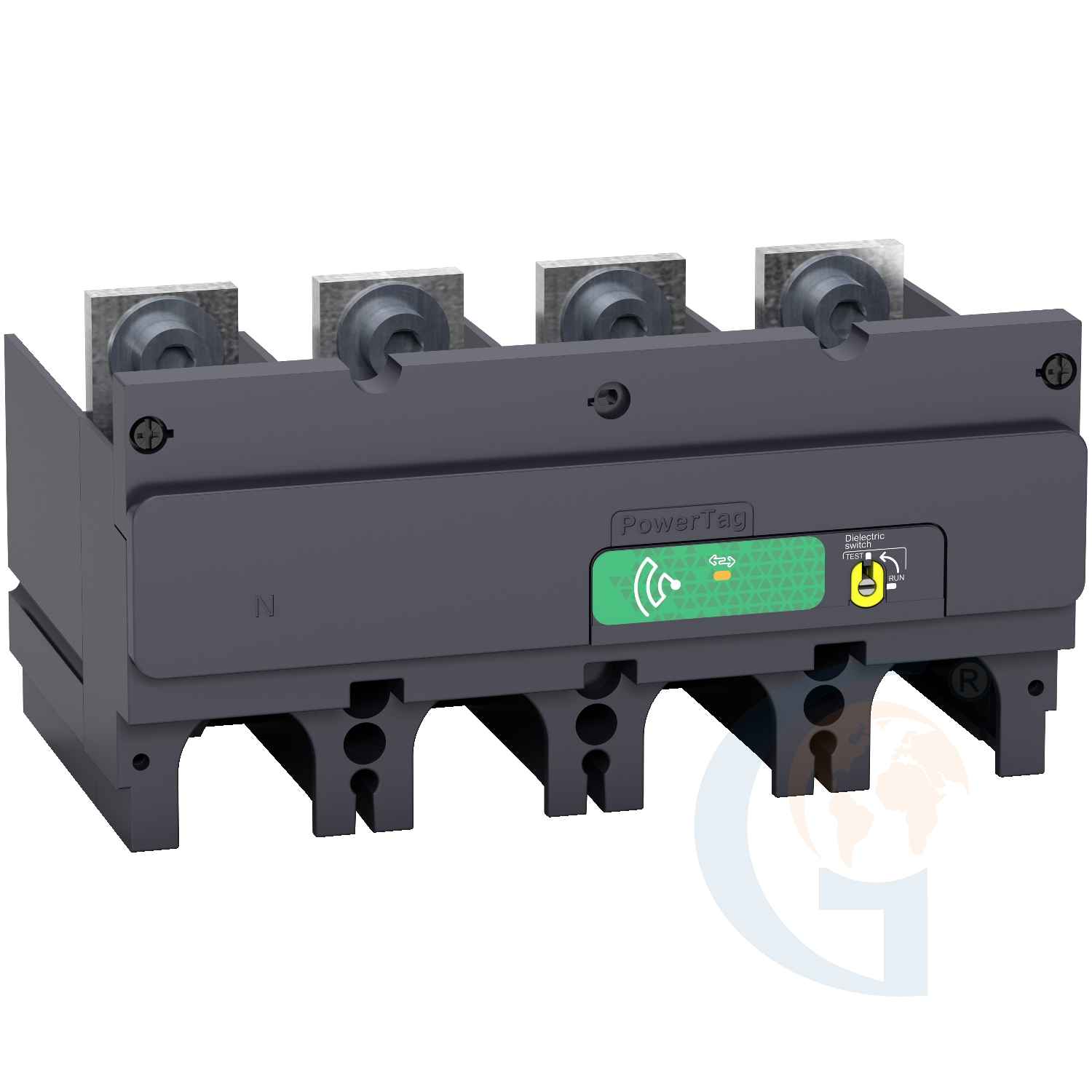

energy sensor, PowerTag Monoconnect, 630 A, 3P+N

Features

• range of product PowerLogic
• product name PowerTag M630
• product or component type Energy sensor
• Poles 3P + N
• maximum current [Imax] 630 A
• [Ib] basic current 100 A
• starting current 400 mA
• saturation current 1260 A
• product specific application Energy management Overload alarm Power factor Load monitoring Circuit monitoring
• Concentrator compatibility Acti9 Smartlink SI B Acti9 Smartlink SI D Acti9 PowerTag Link C Acti9 PowerTag Link Acti9 PowerTag Link HD Harmony Hub Wiser IP module
• range compatibility Compact NSX Compact NSX400...630 Compact INS Compact INS320...630 Compact INV Compact INV320...630 Compact NS Compact NS400/630
• type of measurement Active and reactive energy Active and reactive power Apparent power Current Voltage Power factor
• accuracy class Class 1 active energy conforming to IEC 61557-12 Class 2 reactive energy conforming to IEC 61557-12 Class 1 active power conforming to IEC 61557-12 Class 2 reactive power conforming to IEC 61557-12 Class 2 apparent power conforming to IEC 61557-12 Class 1 current conforming to IEC 61557-12 Class 0.5 voltage conforming to IEC 61557-12 Class 1 power factor conforming to IEC 61557-12
• metering type Power factor 0...1: class 1 at 25 °C conforming to IEC 61557-12 Active energy Ep IN/OUT/tot 0...281 x 10exp(9) kWh: class 1 at 25 °C conforming to IEC 61557-12 Reactive energy Ep IN/OUT/tot 0...281 x 10exp(9) kVARh: class 2 at 25 °C conforming to IEC 61557-12 Voltage U12
• mounting location U23
• mounting support U31 320...480 V: class 0.5 at 25 °C conforming to IEC 61557-12 Voltage V1N
• connection pitch V2N
• product destination V3N 184...276 V: class 0.5 at 25 °C conforming to IEC 61557-12 Current I1
• Event management I2
• transmission support medium I3
• maximum emission power Iavg 20...630 A: class 1 at 25 °C conforming to IEC 61557-12 Apparent power S
• [Imp] maximum permanent current S1
• mounting mode S2
• tightening torque S6 221 VA...1048 kVA: class 2 at 25 °C conforming to IEC 61557-12 Active power P
• supply voltage P1
• network frequency P2
• P6 221 W...1048 kW: class 1 at 25 °C conforming to IEC 61557-12 Reactive power Q
• Q1
• Q2
• Q6 221 VAR...1048 kVAR: class 2 at 25 °C conforming to IEC 61557-12 Frequency 45...65 Hz
• Bottom Indoor use only
• On circuit breaker
• 45 mm
• Switchboard
• Voltage loss with measured current at voltage loss
• Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4 (11…26) transmission time < 5 ms
• 10 mW
• 1.2 x In
• Bolt-on
• 50 N.m
• 230 V AC
• +/- 20 %
• between phase and neutral 400 V AC
• +/- 20 %
• between phases
• 50 Hz 60 Hz
