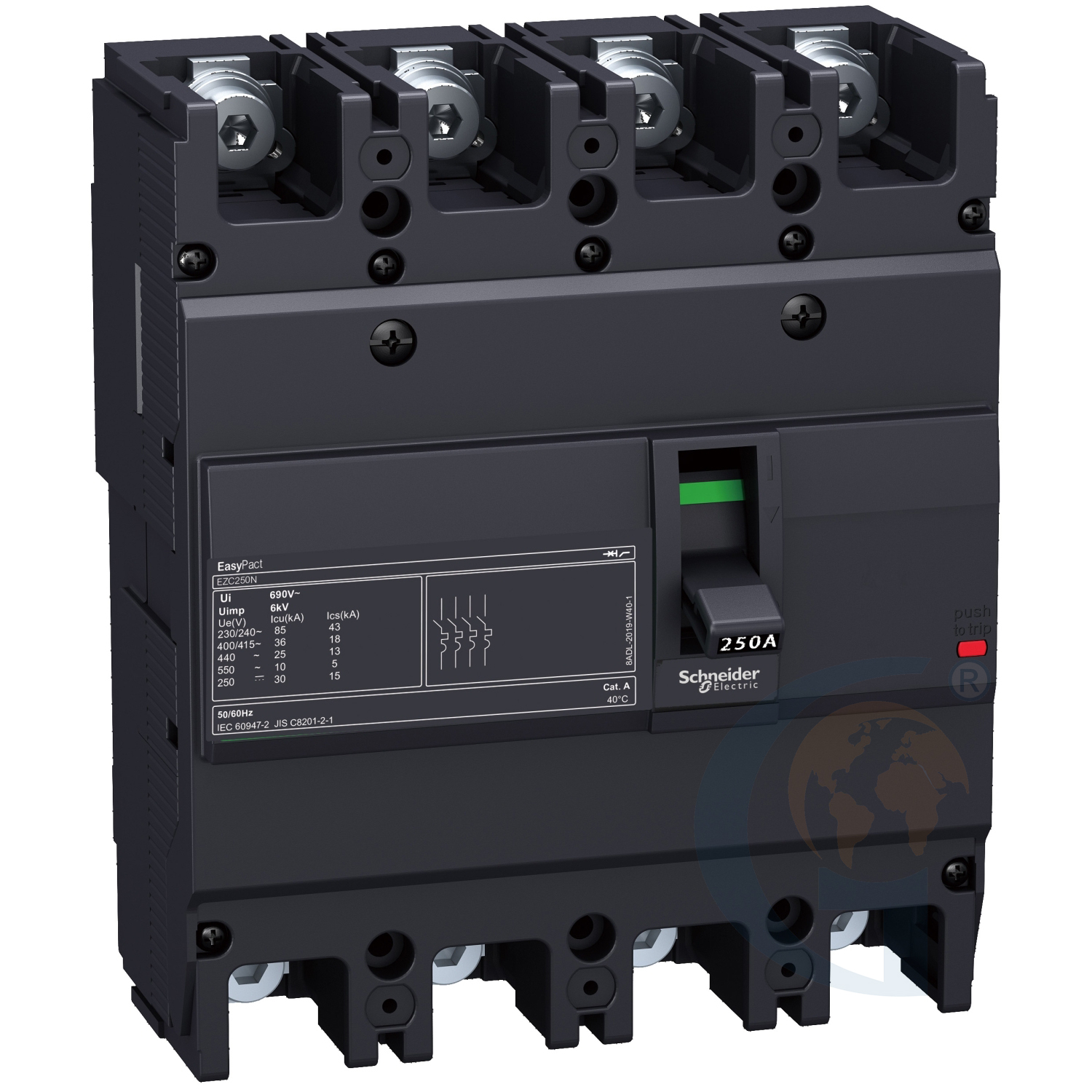

CIRCUIT BREAKER EASYPACT EZC250N – TMD – 125 A – 4 POLES 3D

Features

• range of product EasyPact
• product or component type Circuit breaker
• device short name Easypact EZC250N
• circuit breaker name Easypact EZC250N
• device application Distribution
• poles description 4P
• protected poles description 3t
• network type DC AC
• network frequency 50/60 Hz
• [In] rated current 250 A at 40 °C
• [Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
• [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
• [Ue] rated operational voltage 550 V AC 50/60 Hz conforming to IEC 60947-2 250 V DC conforming to IEC 60947-2
• breaking capacity code N
• breaking capacity 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 125 V DC 1P conforming to IEC 60947-2 20 kA Icu at 250 V DC 2P conforming to IEC 60947-2 8 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
• [Ics] rated service breaking capacity 10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 125 V DC conforming to IEC 60947-2 10 kA at 250 V DC conforming to IEC 60947-2 4 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2 12.5 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
• suitability for isolation Yes conforming to IEC 60947-2
• utilisation category Category A
• trip unit name TM-D
• trip unit technology Thermal-magnetic
• trip unit rating 125 A at 50 °C
• protection type Short-circuit protection Overload protection
• pollution degree 3 conforming to IEC 60947
• control type Toggle
• mounting mode Fixed
• mounting support Backplate
• upside connection Front
• downside connection Front
