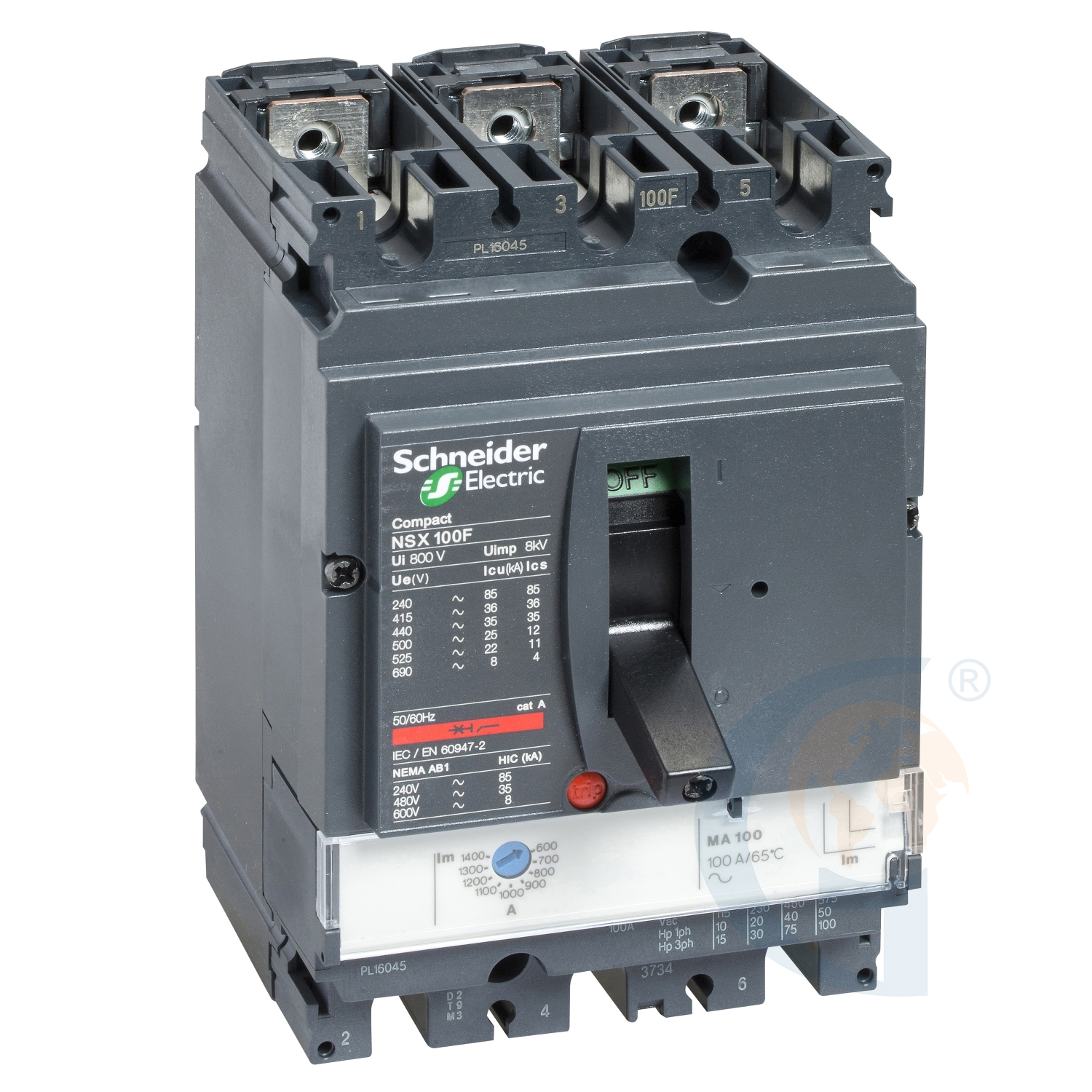

circuit breaker Compact NSX100H, 70 kA at 415 VAC, MA trip unit 50 A, 3 poles 3d

Features

• range Compact
• product name Compact NSX
• device short name Compact NSX100H
• product or component type Circuit breaker
• device application Motor
• poles description 3P
• protected poles description 3t
• [In] rated current 50 A at 65 °C
• [Ue] rated operational voltage 690 V AC 50/60 Hz
• network type AC
• network frequency 50/60 Hz
• suitability for isolation Yes conforming to EN 60947-2 Yes conforming to IEC 60947-2
• utilisation category Category A
• [Icu] rated ultimate short-circuit breaking capacity 10 kA at 600 V AC 50/60 Hz conforming to UL 508 85 kA at 240 V AC 50/60 Hz conforming to UL 508 65 kA at 480 V AC 50/60 Hz conforming to UL 508 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
• Performance level H 70 kA 415 V AC
• trip unit name MA
• trip unit technology Magnetic
• trip unit protection functions I
• control type Toggle
• Circuit breaker mounting mode Fixed
• [Ui] rated insulation voltage 800 V AC 50/60 Hz
• [Uimp] rated impulse withstand voltage 8 kV
• [Ics] rated service short-circuit breaking capacity 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 35 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
• mechanical durability 50000 cycles
• electrical durability 10000 cycles 690 V In conforming to IEC 60947-2 20000 cycles 690 V In/2 conforming to IEC 60947-2 30000 cycles 440 V In conforming to IEC 60947-2 50000 cycles 440 V In/2 conforming to IEC 60947-2
