circuit breaker basic frame, Compact NS 1000N, 50 kA at 415 VAC, 1000 A, fixed, manually operated, without trip unit, 4P

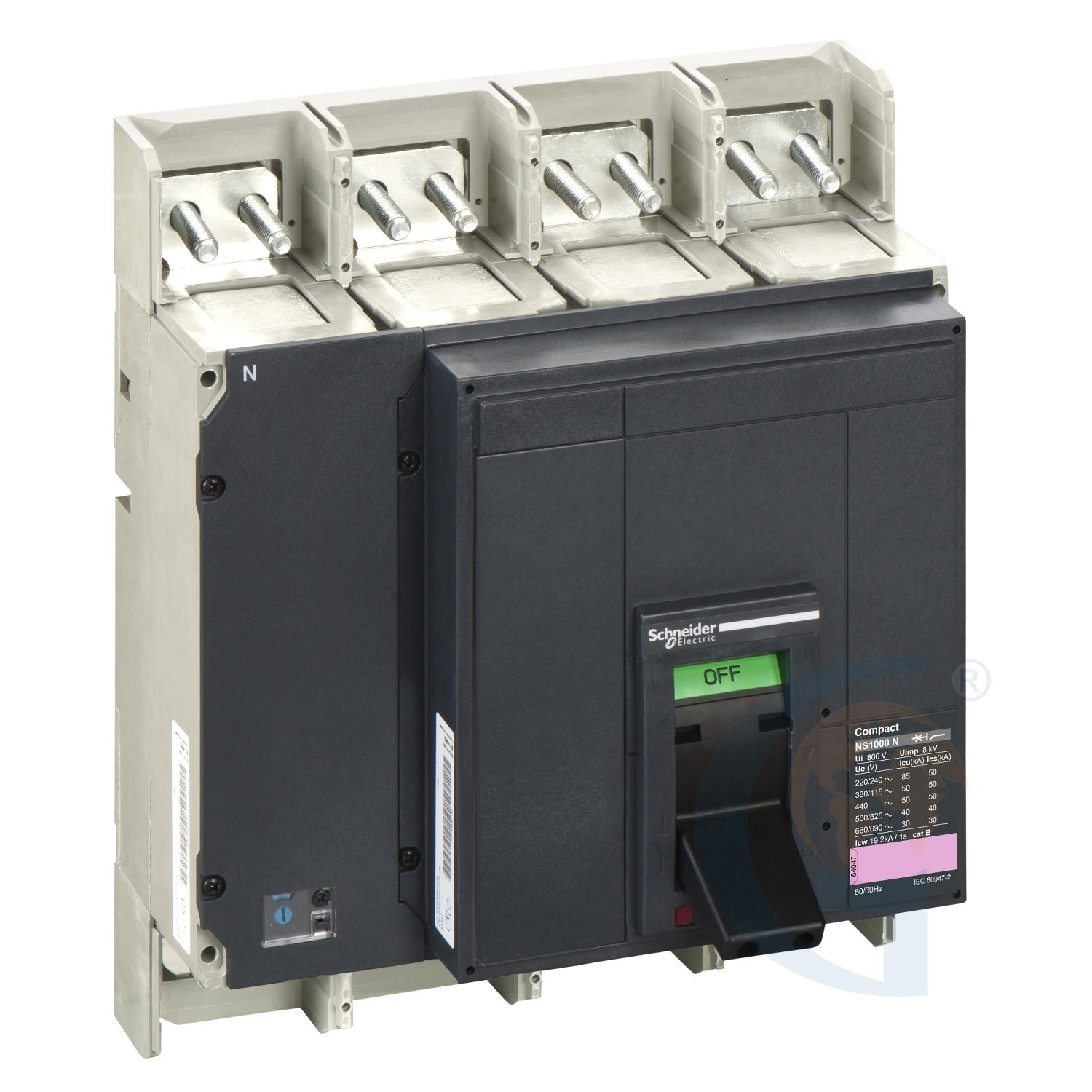

Schneider Electric 33244 circuit breaker basic frame, Compact NS 1000N, 50 kA at 415 VAC, 1000 A, fixed, manually operated, without trip unit, 4P
Product information
Key Features
- range of product NS630b...1600
- product or component type Basic frame
- device short name Compact NS1000N
- device application Distribution
- circuit breaker name Compact NS1000N
Schneider Electric
- Model #:
- 33244
- Part #:
- 33244
33244 Schneider Electric | BUY OR REPAIR
Overview
Low Voltage Products and Systems > Circuit Breakers and Switches > Molded Case Circuit Breakers – MCCBs > ComPact NS > 33244
Features
- range of product NS630b...1600
- product or component type Basic frame
- device short name Compact NS1000N
- device application Distribution
- circuit breaker name Compact NS1000N
- poles description 4P
- neutral position Left
- network type AC
- breaking capacity code N
- suitability for isolation Yes conforming to IEC 60947-2
- utilisation category Category B
- network frequency 50/60 Hz
- control type Rotary handle Toggle
- mounting mode Fixed
- mounting support Backplate
- (In) rated current up to 65 °C 1000 A at 50 °C
