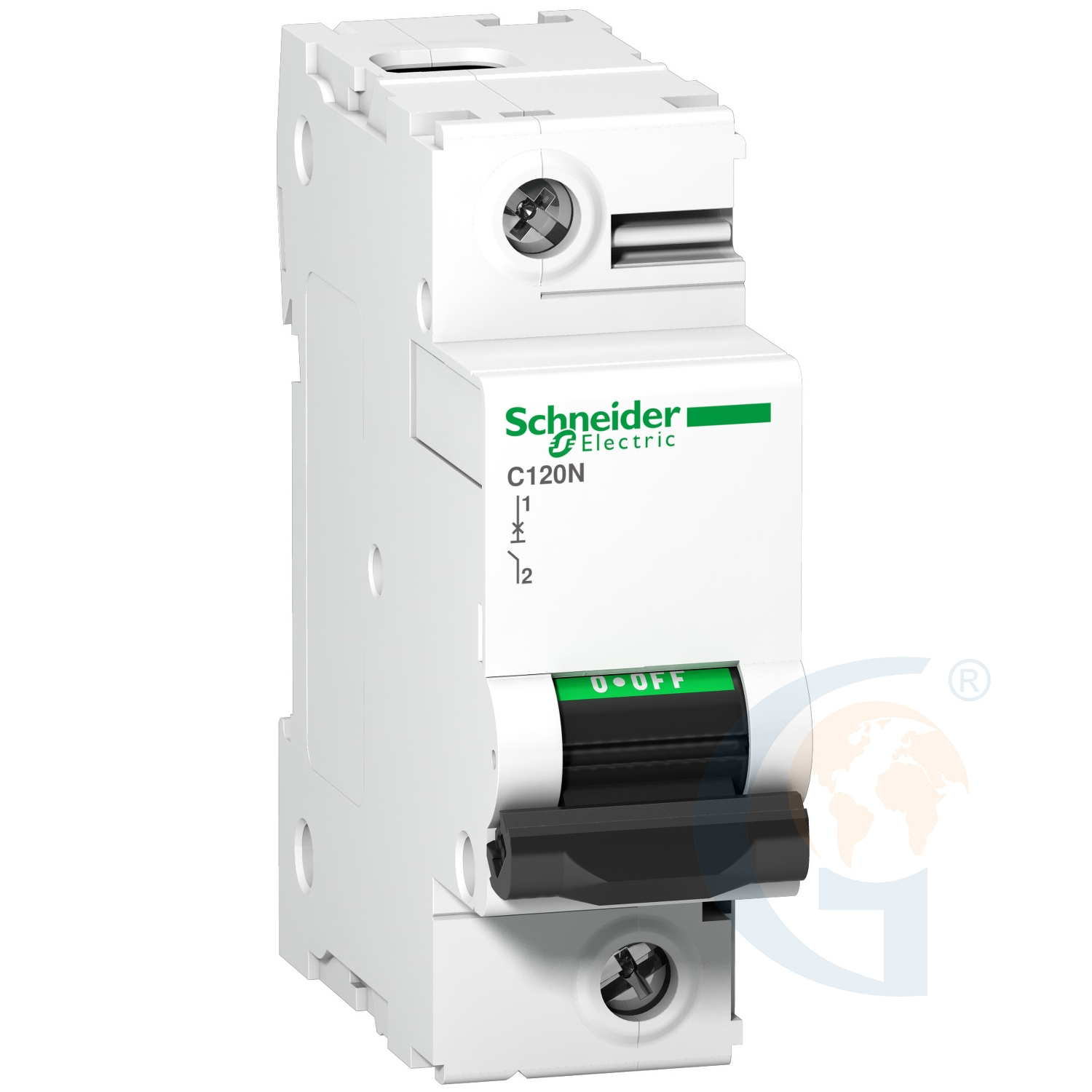

C120N – CIRCUIT BREAKER – 1P – 100A – D CURVE

Schneider Electric A9N18380 C120N – CIRCUIT BREAKER – 1P – 100A – D CURVE

Product information

Key Features
  • range of product C120
  • range Acti 9
  • product name C120
  • product or component type Miniature circuit-breaker
  • device short name C120N
Schneider Electric
Model #:
A9N18380
Part #:
A9N18380
A9N18380 Schneider Electric | BUY OR REPAIR

    Need a Quote Sent?

    Repair Price Guarantee: We’ll meet or beat any competitor’s repair price.

    We are committed to your privacy. Global Electronic Services uses the information you provide to contact you about our relevant content, products, and services. You may unsubscribe from these communications at any time. For more information, please review our Privacy Policy.

    Overview

    Low Voltage Products and Systems > Electrical Protection and Control > Acti9 Miniature Circuit Breakers – MCBs > Acti9 C120 > A9N18380

    Features

    • range of product C120
    • range Acti 9
    • product name C120
    • product or component type Miniature circuit-breaker
    • device short name C120N
    • device application Distribution
    • poles description 1P
    • number of protected poles 1
    • [In] rated current 100 A at 30 °C
    • network type AC
    • trip unit technology Thermal-magnetic
    • curve code D
    • breaking capacity 3 kA Icu at 380...415 V AC 50/60 Hz IT conforming to EN/IEC 60947-2 20 kA Icu at 130 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 12 V DC conforming to EN/IEC 60947-2 15 kA Icu at 125 V DC conforming to EN/IEC 60947-2 10 kA Icu at <= 144 V DC conforming to EN/IEC 60947-2 10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 12 V AC 50/60 Hz conforming to EN/IEC 60947-2 10000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1
    • suitability for isolation Yes conforming to IEC 60947-2
    • network frequency 50/60 Hz
    • [Ue] rated operational voltage 380...415 V AC 50/60 Hz 125 V DC <= 144 V DC 12 V DC 220...240 V AC 50/60 Hz 230...400 V AC 50/60 Hz 130 V AC 50/60 Hz 12 V AC 50/60 Hz
    • magnetic tripping limit 10...14 x In
    • [Ics] rated service breaking capacity 15 kA 75 % conforming to EN/IEC 60947-2 - 130 V AC 50/60 Hz 15 kA 100 % conforming to EN/IEC 60947-2 - 125 V DC 2.25 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 15 kA 100 % conforming to EN/IEC 60947-2 - 12 V DC 10 kA 100 % conforming to EN/IEC 60947-2 - <= 144 V DC 7.5 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 15 kA 75 % conforming to EN/IEC 60947-2 - 12 V AC 50/60 Hz 7500 A 75 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz
    • limitation class 3 conforming to EN/IEC 60947-2
