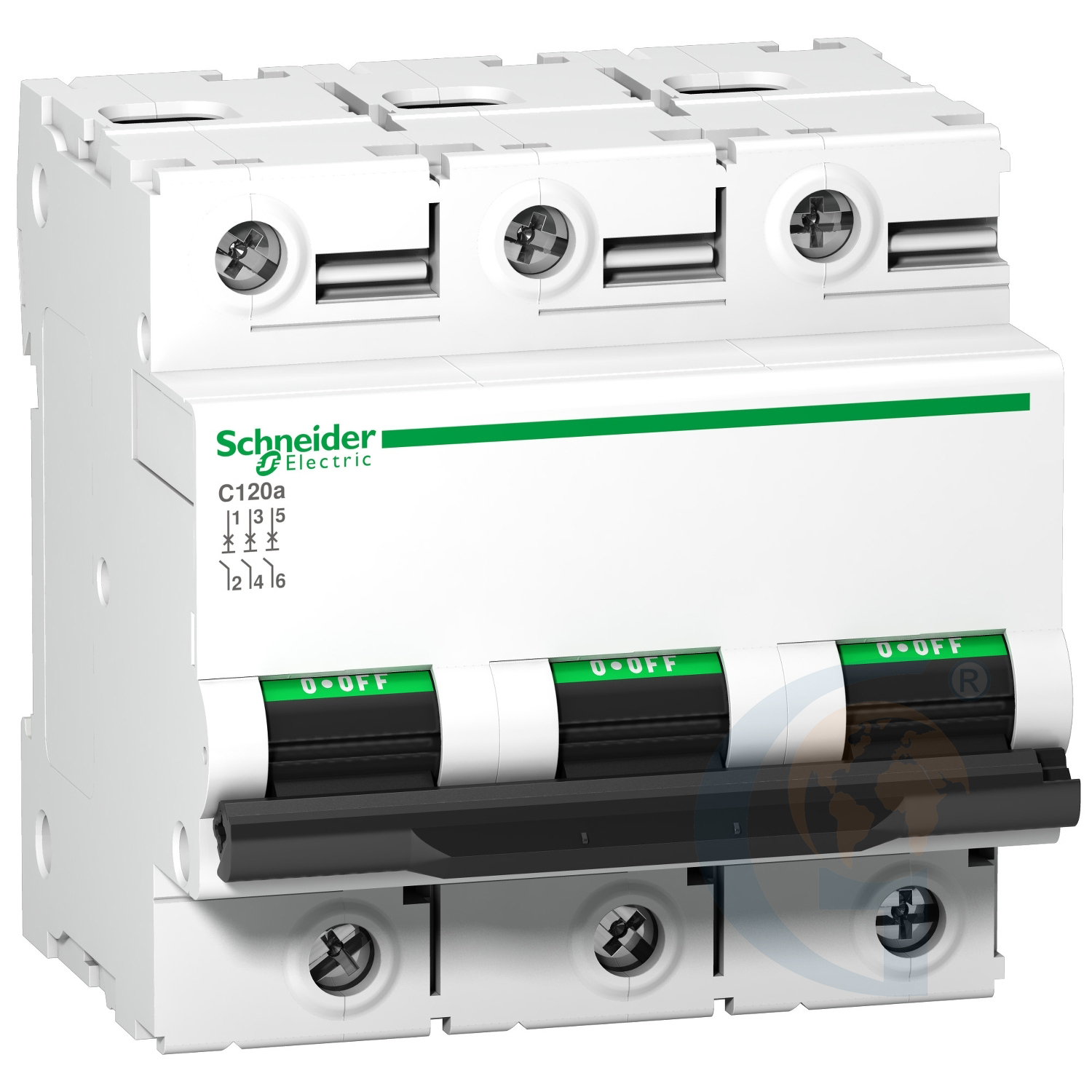

C120A CIRCUIT BREAKER – 3P – 80A – D CURVE
Schneider Electric A9N60723 C120A CIRCUIT BREAKER – 3P – 80A – D CURVE
Product information
Key Features
- range of product C120
- range Acti 9
- product name C120
- product or component type Miniature circuit-breaker
- device short name C120a
Schneider Electric
- Model #:
- A9N60723
- Part #:
- A9N60723
A9N60723 Schneider Electric | BUY OR REPAIR
Overview
Low Voltage Products and Systems > Electrical Protection and Control > Acti9 Miniature Circuit Breakers – MCBs > Acti9 C120 > A9N60723
Features
- range of product C120
- range Acti 9
- product name C120
- product or component type Miniature circuit-breaker
- device short name C120a
- device application Distribution
- poles description 3P
- number of protected poles 3
- [In] rated current 80 A
- network type AC
- trip unit technology Thermal-magnetic
- curve code D
- breaking capacity 5 kA Icu at 230...400 V AC 50/60 Hz conforming to EN/IEC 60947-2
- suitability for isolation Yes conforming to EN/IEC 60947-2
- network frequency 50/60 Hz
- [Ue] rated operational voltage 230...400 V AC 50/60 Hz
- magnetic tripping limit 12 x In +/- 20 %
- [Ics] rated service breaking capacity 5 kA 100 % conforming to EN/IEC 60947-2 - 230...400 V AC 50/60 Hz
- limitation class 3 conforming to EN/IEC 60947-2
