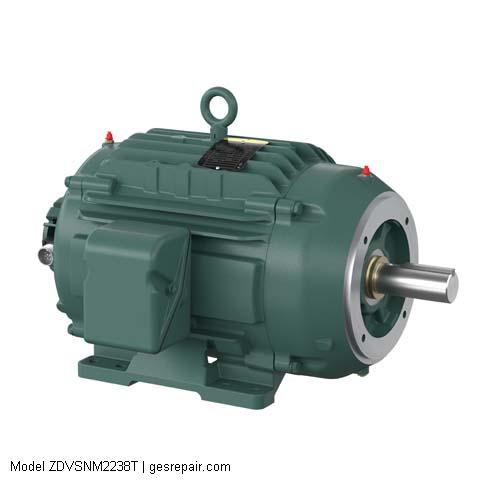

Baldor-Reliance Electric Motors Model ZDVSNM2238T Service, Sales, Replacement Parts
Baldor-Reliance ZDVSNM2238T Baldor-Reliance Electric Motors Model ZDVSNM2238T Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category Vector Drive Motor
- Motor Phase 3 ph
- Motor Horsepower 10 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 254TC
- Enclosure Type TENV (Totally Enclosed Non-Ventilated)
- Frequency Rating 60 Hz
- Duty Condition Type Continuous Duty
- Base RPM 1770 rpm
Baldor-Reliance
- Model #:
- ZDVSNM2238T
- Part #:
- ZDVSNM2238T
- New/Surplus $ 10462
- Refurb. Price $7323 Save up to $ 3139
- Repair Price $5231 Save up to $ 5231
ZDVSNM2238T Baldor-Reliance | BUY OR REPAIR
Overview
Vector Drive Motor – 10 hp, 1800 rpm, 3 ph, 230/460 V, 254TC Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 60 Hz, 1770 rpm Base, Foot Mount, Continuous Duty
Features
- Motor Category Vector Drive Motor
- Motor Phase 3 ph
- Motor Horsepower 10 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 254TC
- Enclosure Type TENV (Totally Enclosed Non-Ventilated)
- Frequency Rating 60 Hz
- Duty Condition Type Continuous Duty
- Base RPM 1770 rpm
- Mounting Type Foot
- Full Load Efficiency 91.70 %
- Amps @ Voltage Contact Global Electronic Services
- Description Keyword 10 hp
- Volts @ Frequency Contact Global Electronic Services
- Shaft Diameter 1.6250 in
- Overall Length C Dimension 24.05 in
- Service Factor 1.00
- Frame Material Cast Iron
- Insulation Class F
- Standards Met UR CSA
- Harmonization Code 8501.52.4000
- Weight 359 lbs
- Applications Baldor-Reliance Electric Motors ZDVSNM2238T
- Additional Details Baldor-Reliance Electric Motors ZDVSNM2238T
- Manufacturer Catalog Contact Global Electronic Services
- Manufacturer Product Page Contact Global Electronic Services
- UPC_NO 781568469163
- Wiring Diagram Contact Global Electronic Services
- Instructional Video Contact Global Electronic Services
- Instructional Video 2 Contact Global Electronic Services
- Product Type Inverter Vector Duty Motors
