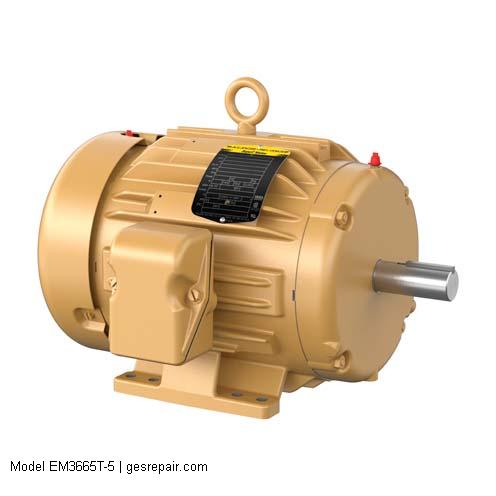

Baldor-Reliance Electric Motors Model EM3665T-5 Service, Sales, Replacement Parts
Baldor-Reliance EM3665T-5 Baldor-Reliance Electric Motors Model EM3665T-5 Service, Sales, Replacement Parts
Product information
Key Features
- Motor Phase 3 ph
- Motor Horsepower 5 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 575 V
- Frame Size 184T
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Base RPM 1750 rpm
- Duty Condition Type Continuous Duty
- Mounting Type Foot
Baldor-Reliance
- Model #:
- EM3665T-5
- Part #:
- EM3665T-5
- New/Surplus $ 1774
- Refurb. Price $1242 Save up to $ 532
- Repair Price $887 Save up to $ 887
EM3665T-5 Baldor-Reliance | BUY OR REPAIR
Overview
General Purpose Motor – 5 hp, 1800 rpm, 3 ph, 575 V, 184T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1750 rpm Base, Foot Mount, Continuous Duty
Features
- Motor Phase 3 ph
- Motor Horsepower 5 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 575 V
- Frame Size 184T
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Base RPM 1750 rpm
- Duty Condition Type Continuous Duty
- Mounting Type Foot
- Full Load Current 5.30 A
- Full Load Efficiency 89.50 %
- Amps @ Voltage Contact Global Electronic Services
- Volts @ Frequency Contact Global Electronic Services
- Description Keyword 5 hp
- Shaft Diameter 1.1250 in
- Overall Length C Dimension 15.24 in
- Warranty 3 Year Warranty
- Type Of Bearing Ball
- NEMA Design Class B
- Service Factor 1.15
- Frame Material Cast Iron
- Insulation Class F
- IP Rating 44
- Standards Met CSA EEV UR CSA
- Weight 112 lbs
- Applications Baldor-Reliance Electric Motors EM3665T-5
- Additional Details Baldor-Reliance Electric Motors EM3665T-5
- Harmonization Code 8501.52.4000
- UPC_NO 781568117712
- Manufacturer Catalog Contact Global Electronic Services
- Manufacturer Product Page Contact Global Electronic Services
- Motor Category General Purpose Motor
- Wiring Diagram Contact Global Electronic Services
- Instructional Video Contact Global Electronic Services
- Product Type General Purpose Motors
