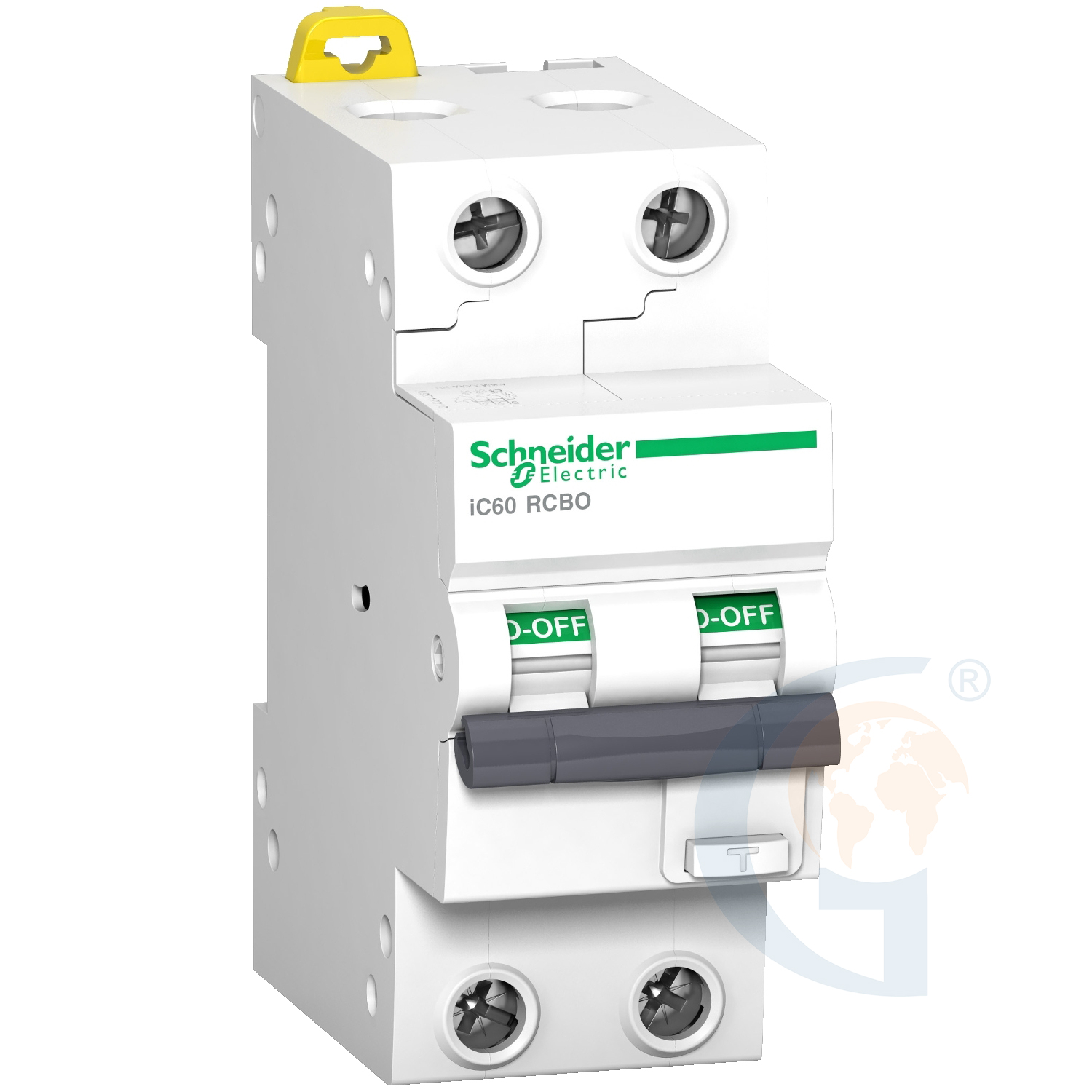

ACTI9 IC60 RCBO – 2P – 10 A – C CURVE – 10000A/15KA – 30 MA – AC TYPE
Schneider Electric A9D07210 ACTI9 IC60 RCBO – 2P – 10 A – C CURVE – 10000A/15KA – 30 MA – AC TYPE
Product information
Key Features
- range Acti 9
- product name Acti 9 iC60 RCBO
- product or component type Residual current breaker with overcurrent protection (RCBO)
- device short name IC60 RCBO
- device application Distribution
Schneider Electric
- Model #:
- A9D07210
- Part #:
- A9D07210
A9D07210 Schneider Electric | BUY OR REPAIR
Overview
Low Voltage Products and Systems > Electrical Protection and Control > Acti9 Residual Current Devices – RCDs > Acti9 iC60 RCBO (2P, 3P, 4P) > A9D07210
Features
- range Acti 9
- product name Acti 9 iC60 RCBO
- product or component type Residual current breaker with overcurrent protection (RCBO)
- device short name IC60 RCBO
- device application Distribution
- poles description 2P
- number of protected poles 2
- [In] rated current 10 A
- network type AC
- trip unit technology Thermal-magnetic
- curve code C
- earth-leakage sensitivity 30 mA
- earth-leakage protection time delay Instantaneous
- earth-leakage protection class Type AC
- breaking capacity 10000 A Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1 15 kA Icu at 220...240 V AC 50 Hz conforming to EN/IEC 60947-2
- suitability for isolation No conforming to IEC 60947-1
- quality labels IMQ VDE NF KEMA-KEUR
- device location in system Outgoer
- network frequency 50 Hz
- [Ue] rated operational voltage 220...240 V AC 50 Hz
- magnetic tripping limit 5...10 x In
- residual current tripping technology Voltage independent
