ACTI9 IC40N – MINIATURE CIRECUIT-BREAKER – 1P+N – 4A – C CURVE – 6000A/10KA

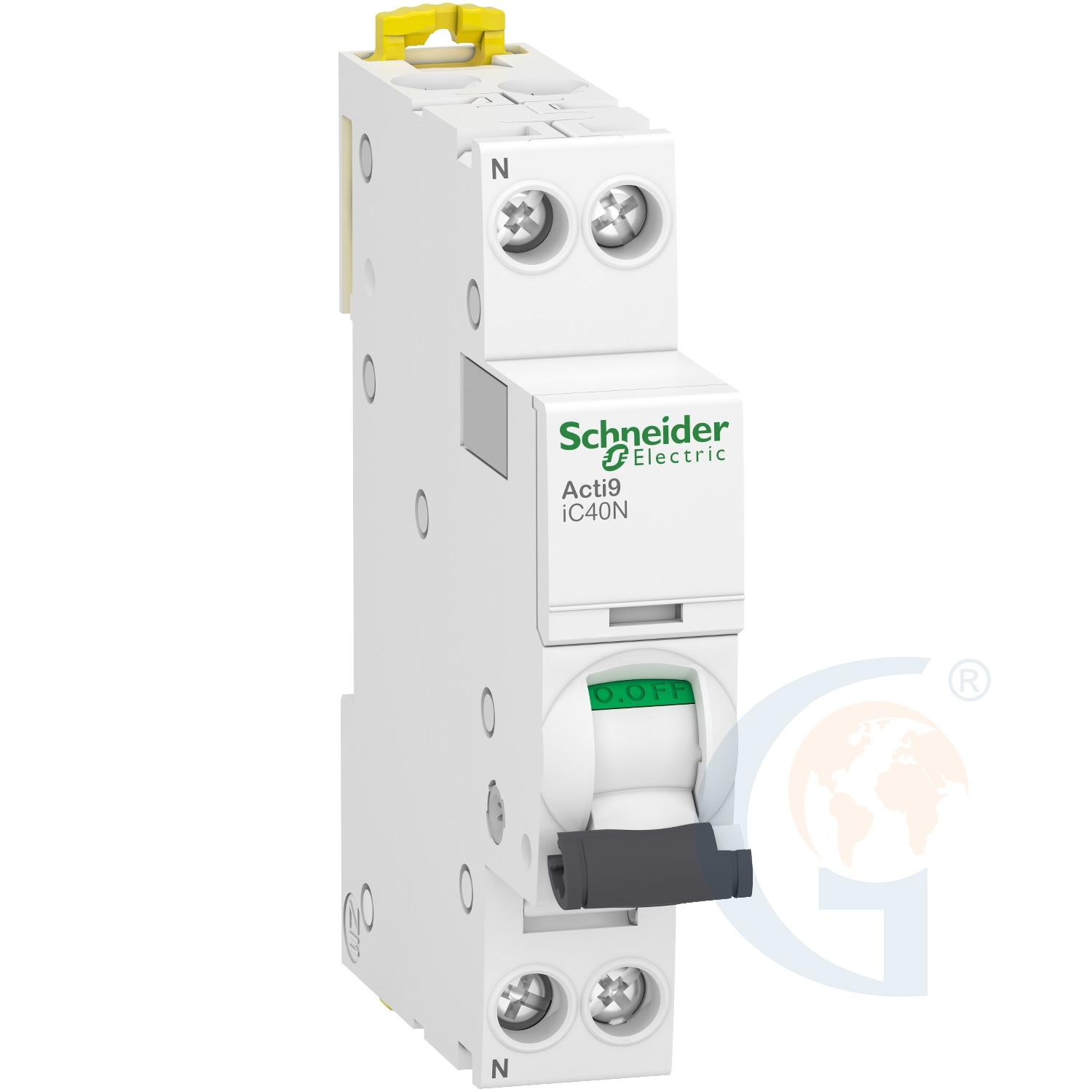

Schneider Electric A9P54604 ACTI9 IC40N – MINIATURE CIRECUIT-BREAKER – 1P+N – 4A – C CURVE – 6000A/10KA
Product information
Key Features
- range Acti9
- product name Acti9 iC40
- product or component type Miniature circuit-breaker
- device short name IC40N
- device application Distribution
Schneider Electric
- Model #:
- A9P54604
- Part #:
- A9P54604
A9P54604 Schneider Electric | BUY OR REPAIR
Overview
Low Voltage Products and Systems > Electrical Protection and Control > Acti9 Miniature Circuit Breakers – MCBs > Acti9 iC40 > A9P54604
Features
- range Acti9
- product name Acti9 iC40
- product or component type Miniature circuit-breaker
- device short name IC40N
- device application Distribution
- poles description 1P + N
- number of protected poles 1
- neutral position Left
- [In] rated current 4 A
- network type AC
- trip unit technology Thermal-magnetic
- curve code C
- breaking capacity 10 kA Icu at 230 V AC 50/60 Hz conforming to EN/IEC 60947-2 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
- suitability for isolation Yes conforming to EN/IEC 60947-2
- quality labels IMQ
- network frequency 50/60 Hz
- [Ue] rated operational voltage 230 V AC 50/60 Hz
- magnetic tripping limit 5...10 x In conforming to EN/IEC 60898-1 8 x In +/- 20 % conforming to EN/IEC 60947-2
- [Ics] rated service breaking capacity 6000 A 100 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 7.5 kA 75 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60947-2
- limitation class 3 conforming to EN/IEC 60898-1
