ACTI 9 IDPNA VIGI – RCBO – 1P+N – 25A – B CURVE – 4500A – 30MA – TYPE AC

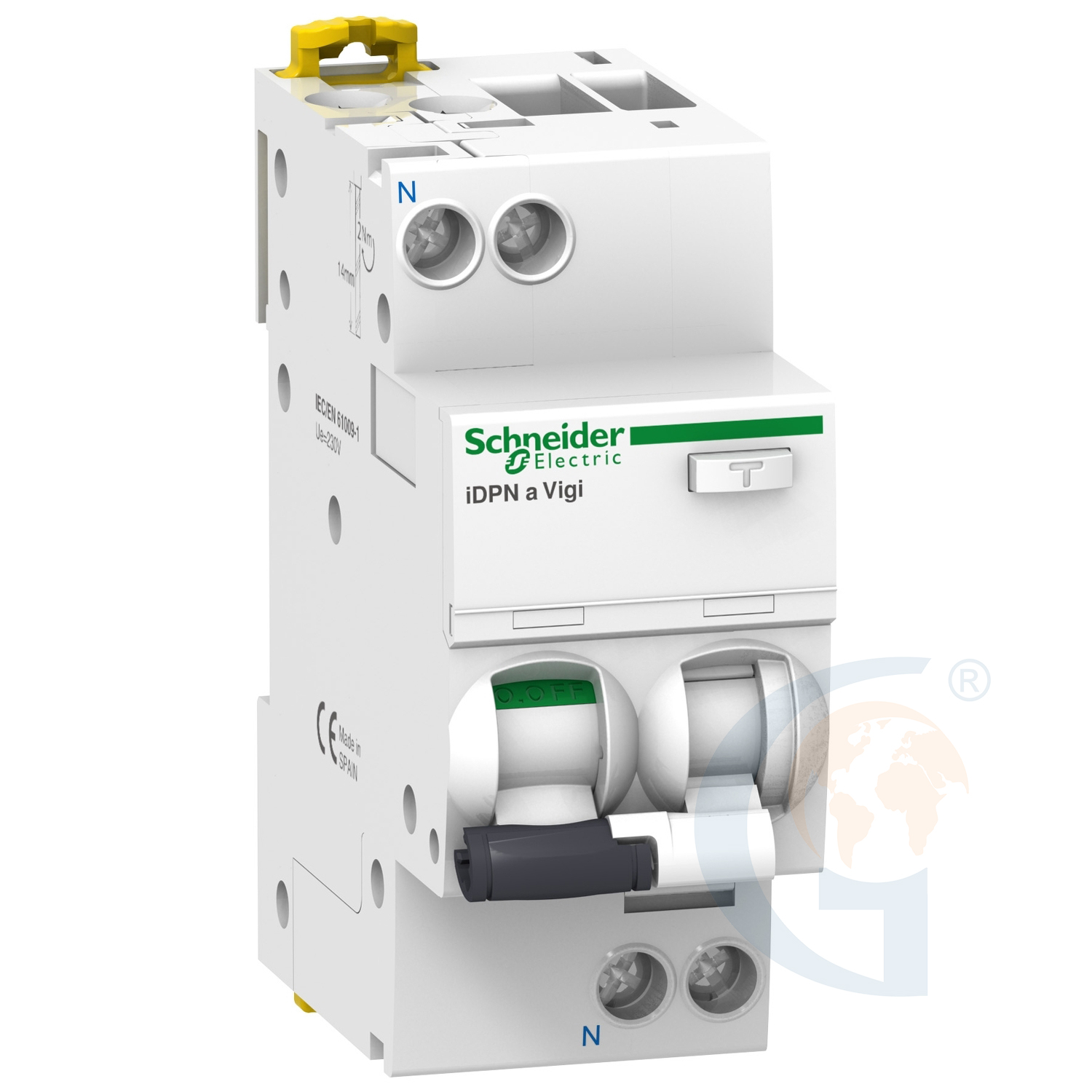

Schneider Electric A9D51625 ACTI 9 IDPNA VIGI – RCBO – 1P+N – 25A – B CURVE – 4500A – 30MA – TYPE AC
Product information
Key Features
- range Acti 9
- product name Acti 9 iDPN Vigi
- product or component type Residual current breaker with overcurrent protection (RCBO)
- device short name IDPNa Vigi
- device application Distribution
Schneider Electric
- Model #:
- A9D51625
- Part #:
- A9D51625
A9D51625 Schneider Electric | BUY OR REPAIR
Overview
Low Voltage Products and Systems > Electrical Protection and Control > Acti9 Residual Current Devices – RCDs > Acti9 iDPN Vigi > A9D51625
Features
- range Acti 9
- product name Acti 9 iDPN Vigi
- product or component type Residual current breaker with overcurrent protection (RCBO)
- device short name IDPNa Vigi
- device application Distribution
- poles description 1P + N
- number of protected poles 1
- neutral position Left
- [In] rated current 25 A
- network type AC
- trip unit technology Thermal-magnetic
- curve code B
- earth-leakage sensitivity 30 mA
- earth-leakage protection time delay Instantaneous
- earth-leakage protection class Type AC
- breaking capacity 4500 A Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
- suitability for isolation Yes conforming to EN/IEC 60947-2
- device location in system Outgoer
- network frequency 50 Hz
- [Ue] rated operational voltage 220...240 V AC 50 Hz
- magnetic tripping limit 3...5 x In
- residual current tripping technology Voltage independent
