Calibrating Pneumatic Regulators After Diaphragm Failures

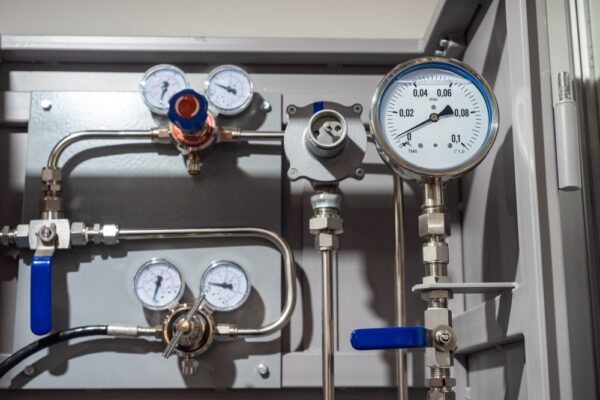

One of the most common catalysts for pneumatic regulator failures is a worn or ruptured diaphragm. These components bear the full force of the system’s dynamic pressure shifts, cycle after cycle. Over time, the material stretches, deforms, or cracks — especially under overpressure conditions or long exposure to oil mist or heat. Once the diaphragm fails, the regulator can no longer maintain setpoint stability, becoming more of a liability than a control device.

Replacing the damaged diaphragm is only half the job, though. Getting the system back to spec means recalibrating the unit from the inside out. Calibration integrity can be the difference between a regulator that works with precision and one that allows errors to creep into the system.

Verify the failure before calibrating anything

Before adjusting anything, confirm that the diaphragm was the root cause — and not a symptom of another issue. Ask:

• Was there overpressure from a faulty compressor or supply valve?
• Did debris or moisture weaken the diaphragm material?
• Were the pressure ranges and media compatible with the regulator specs?

Inspect both the removed diaphragm and the seating surfaces. Look for tearing, cracking, or permanent deformation. If the diaphragm failed catastrophically, debris might have lodged in the pilot orifice or main valve seat. That needs to be cleared before any calibration.

Reset the mechanical zero on the spring assembly

Once the new diaphragm is installed, the spring-and-plunger assembly needs to be fully reset. This is the mechanical baseline the calibration depends on. If the spring was damaged or if the seat shows signs of gouging, the regulator may not respond consistently to adjustment — even after calibration.

To reset the spring assembly, start by removing the preload from the adjustment screw. Confirm the spring is centered and seated. Then, check that the plunger moves freely through the full stroke range. Test a couple of times before introducing pressure.

Re-establish the setpoint range slowly

Bring pressure up gradually while monitoring the output gauge. You need to stabilize the internal balance between spring force and diaphragm deflection at your target pressure range. Start below the expected setpoint! Use small turns of the adjustment screw while tracking both supply and output pressure. Be sure to pause between adjustments to allow the diaphragm to settle under load.

Validate pressure stability under variable flow

Calibrating at static pressure doesn’t tell the whole story. To verify a proper recalibration, apply dynamic load conditions. Cycle downstream flow to simulate actuator or valve demands, watching for overshoot, delay, or hunting around the setpoint. Check the response speed during ramp-up and relief, as well. If the regulator lags or oscillates, it may need finer tuning — or the return spring may be mismatched for the application.

Test for hysteresis and return accuracy

Too often, tech skip repeatability testing — but it’s where diaphragm replacements often fail under real-world conditions. After calibration, drop the pressure to zero, then bring it back up again. While doing this, observe:

• Does the regulator return to the same setpoint?
• Is the output consistent across multiple ramp-ups and shutdowns?
• Are there any signs of slow leakdown or pressure creep?

Document final performance values for future maintenance

Once calibration is complete, document the results: Input and output pressure at setpoint, supply pressure during dynamic testing, time to stabilize under load change, and return accuracy over multiple cycles. Use this information as part of future maintenance checks to make sure the regulator is working appropriately and that the diaphragm is performing as expected.

Calibration may seem tedious, but it’s the best way to avoid recurrent problems and the rippling effects that can follow diaphragm failures. And, if you need help, GES is standing by. Now through the end of the month, we’re offering 10% OFF single repairs or 15% OFF 3+ repairs on safety equipment, including pneumatic regulators.
