Thermal Expansion Causes Hidden Alignment Shifts in Motor Installations

Motor alignment is often treated as a simple task: align the motor, tighten the bolts, and move on. But alignment doesn’t freeze in place once the equipment starts running. As motors, bases, and driven equipment heat up, they expand at different rates. Those small dimensional changes can shift shaft centerlines just enough to introduce misalignment under operating conditions — even when cold alignment checks look perfect.

This is why alignment-related failures frequently show up weeks or months after installation. The issue isn’t poor alignment work but alignment that didn’t account for thermal movement.

How thermal expansion alters alignment

Every component in a motor installation expands when temperature increases, but not all components expand equally. Motors heat internally from electrical losses. Gearboxes, pumps, and compressors heat from friction and process load. Steel bases, concrete foundations, and mounting hardware all respond differently to temperature changes.

As temperatures rise, the motor may grow upward or outward, while the driven equipment shifts at a different rate — or not at all. The result is a gradual change in shaft position that only appears once the system reaches operating temperature. Even a few thousandths of an inch of movement can be enough to overload bearings and couplings.

Common alignment problems caused by thermal growth

Thermal expansion doesn’t usually create dramatic misalignment but rather subtle, damaging shifts. The most common issues include:

• Vertical misalignment as motors grow upward with heat
• Angular misalignment when motor and driven equipment expand at different rates
• Soft foot conditions that change as bases warm and settle
• Coupling stress caused by shafts no longer sharing a common centerline

Because these shifts occur gradually, vibration levels may rise slowly and inconsistently, making the root cause more difficult to identify.

Why thermal alignment issues are often missed

Traditional alignment checks are typically performed during installation or maintenance shutdowns when equipment is cold. Once the system heats up, no one is standing there rechecking alignment. As a result, teams may chase symptoms like vibration, seal leaks, or bearing failures without realizing alignment has changed under normal operating conditions.

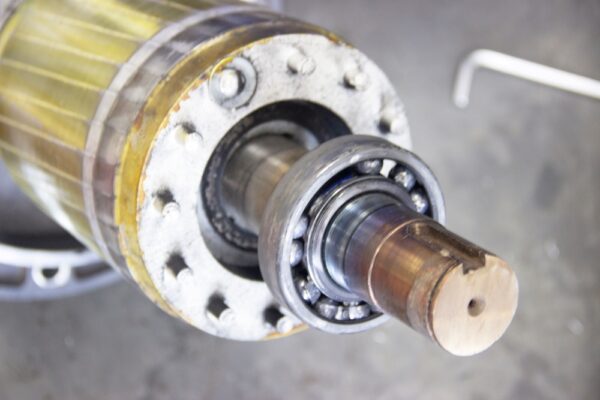

In many cases, the motor passes alignment checks repeatedly, yet bearings continue to fail prematurely. Without considering thermal growth, alignment appears correct on paper while remaining incorrect in practice.

Where thermal expansion causes the most trouble

Thermal alignment shifts are especially problematic in:

• High-power motors that generate significant internal heat
• Long shaft spans where small angular changes amplify stress
• Mixed-material installations (steel bases, cast housings, concrete foundations)
• Equipment with large temperature swings between startup and steady-state operation

These environments magnify the effects of thermal movement and shorten component life if not addressed.

How to account for thermal growth in motor alignment

Managing thermal expansion starts with planning, not correction. Alignment targets should reflect where shafts will be during operation, not just at ambient temperature. This often involves applying calculated thermal growth offsets during alignment so that components settle into proper alignment once heated.

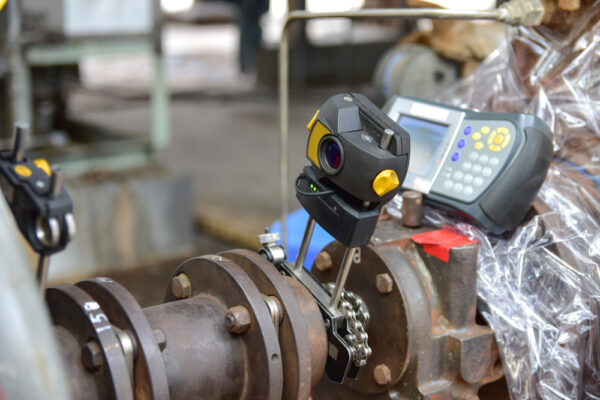

Laser alignment tools, manufacturer growth data, and historical operating temperatures all help estimate how much movement to expect. In critical applications, alignment checks during or immediately after operation can confirm whether thermal compensation is working as intended.

Alignment doesn’t end when the motor starts

Thermal expansion quietly changes alignment every time equipment heats up. When those shifts aren’t accounted for, motors may run misaligned for most of their operating life — even if they were aligned perfectly when cold. By recognizing thermal growth as part of the alignment equation, teams can reduce vibration, extend bearing life, and prevent failures that seem mysterious but are entirely predictable.
