The Science of Hydraulic Seal Materials: Matching Compounds To Conditions
Imagine running a hydraulic system with nitrile seals that harden and crack within weeks. The same application using fluoroelastomer seals runs for 18 months between replacements. Why? Installation quality and maintenance protocols don’t explain the difference. Molecular structure under thermal stress does. Seal material chemistry determines whether a hydraulic system runs reliably or fails repeatedly with identical symptoms.
What hydraulic seals are up against
Hydraulic seals deal with a combination of stresses that compound over time. Choosing the right seal compound means evaluating how these factors interact, not just checking a pressure rating:
- Temperatures rise and fall during startup, steady operation, and shutdown. As operating temperatures increase, elastomers lose elasticity and harden faster.
- Fluids contain additives that interact chemically with seal materials. These additives — including synthetic and fire-resistant fluids — can attack seal materials even when base oil compatibility seems acceptable.
- Pressure cycles constantly as loads change. Pressure cycling introduces fatigue that weakens elastomers over time, while shock loads increase the risk of extrusion.
- Dynamic motion introduces friction, while contamination adds abrasion. Both generate additional heat that accelerates degradation.
Ignoring even one of these factors can shorten seal life dramatically. A compound that handles pressure well may struggle with heat. A material that resists chemicals may lack flexibility at low temperatures. The key is understanding how these stressors overlap in real-world operation.

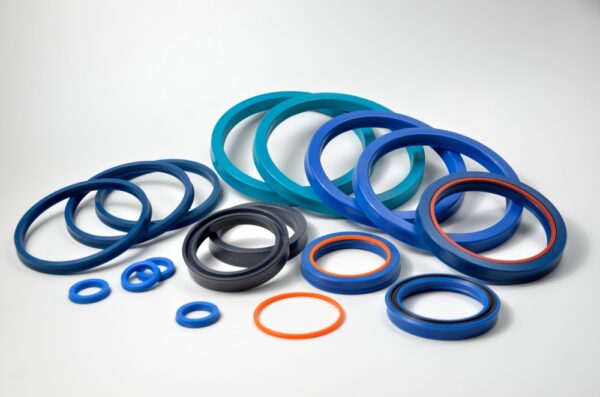

Common hydraulic seal materials (and where they perform best)
- Nitrile rubber (NBR) is one of the most common hydraulic seal materials because it offers good oil compatibility and reasonable temperature resistance at a low cost. It performs well in general-purpose applications but can harden or degrade when exposed to higher heat or aggressive fluids.
- Hydrogenated nitrile (HNBR) improves on NBR by offering better heat resistance, wear performance, and chemical stability. It’s often used in more demanding environments where standard nitrile reaches its limits.
- Fluorocarbon materials — commonly known as FKM or Viton — excel in high-temperature and chemically aggressive applications. Their trade-off is reduced flexibility, especially in colder environments, which can affect sealing performance during startup.
- Polyurethane (PU) seals are known for their excellent abrasion resistance and load-handling capability. They perform well in dynamic applications but can be sensitive to heat and certain fluids if not properly specified.
- PTFE and filled PTFE compounds offer extremely low friction and wide temperature capability. However, they lack elasticity, meaning they rely heavily on precise machining and system alignment to seal effectively.
What happens when the material is wrong
Material mismatch often looks like normal wear until patterns emerge. Seals may harden, crack, or become brittle. Others swell, soften, or extrude under pressure. Friction increases, leading to heat buildup, stick-slip behavior, and inconsistent motion. In many cases, seals fail at predictable intervals, giving the illusion of acceptable service life when the real issue is improper material selection.
Seal failures are often a materials problem
Hydraulic seals fail when compounds don’t align with real operating conditions. Treating seal selection as a materials science problem — rather than a simple parts decision — leads to longer service life, fewer repeat failures, and more reliable hydraulic systems. The right compound matched to the right conditions makes all the difference.
