The Role of Motor End Play in Premature Bearing Wear
Motor bearing failures are often blamed on lubrication issues, misalignment, or contamination. While those factors certainly play a role, there’s another contributor that’s frequently overlooked: motor end play.
Small deviations in axial movement can quietly accelerate bearing wear, shortening motor life and increasing the risk of unexpected downtime. Understanding how motor end play works and how it affects bearings can help maintenance and reliability teams identify problems earlier and prevent repeat failures.
What motor end play is and why it exists

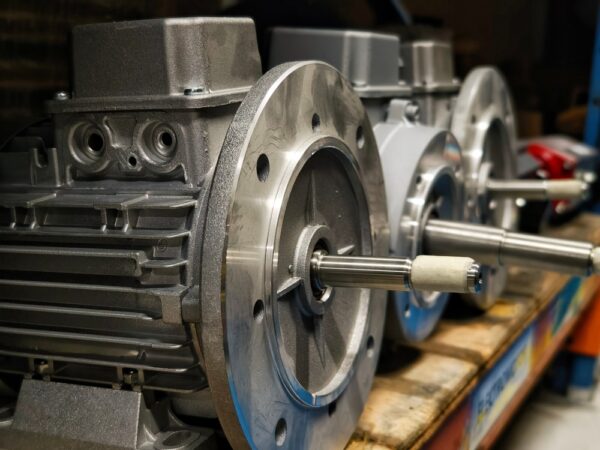

Motor end play refers to the axial movement of the motor shaft and rotor assembly within the housing. This movement is intentional. Electric motors are designed with a defined amount of end play to account for thermal expansion, manufacturing tolerances, and normal operating forces.
When end play is within specification, it allows internal components to move as needed without transferring harmful loads to the bearings. Problems begin when movement drifts outside acceptable limits, often without any immediate or obvious symptom.
Acceptable end play ranges can vary based on motor design, bearing arrangement, and operating conditions, which is why assumptions or “rules of thumb” tend to cause trouble.
How improper end play accelerates bearing wear
Bearings are engineered to carry loads in specific directions. When motor end play is incorrect, those load paths change — sometimes subtly, sometimes dramatically.
With excessive end play, the shaft is able to move too freely in the axial direction. Each shift introduces thrust forces that radial bearings are not intended to absorb on a continuous basis. Over time, this leads to uneven contact patterns inside the bearing, increasing stress on raceways and cages.
When end play is too tight, axial movement is restricted. Bearings can experience unintended preload, which raises friction and operating temperature. As heat builds, lubricant films thin and degrade more quickly, accelerating surface fatigue. In both cases, the motor may continue running normally right up until the bearing fails prematurely.
Where end play problems usually originate
End play issues are rarely caused by a single mistake. More often, they develop through a combination of installation, repair, and operating factors. These can include:
- Installation variables, such as improper shimming, coupling alignment that introduces axial force, or mounting conditions that restrict natural movement
- Repair and rebuild factors, including worn or incorrect bearing fits, missing spacers, or assembly errors that alter internal clearances
- Operational influences, such as thrust loads from connected equipment or thermal growth during continuous, high-duty operation
Individually, these issues may seem minor. Together, they can shift end play just far enough out of range to reduce bearing life significantly.
Signs end play may be a factor in repeated bearing failures
Because end play problems tend to develop gradually, they’re often misdiagnosed. Maintenance teams may see recurring bearing failures, elevated vibration levels, or unexplained heat near the bearing housings, but struggle to identify a consistent cause.
Axial vibration readings that don’t align with typical imbalance or misalignment patterns can be an important clue. Excessive shaft movement observed during an inspection is another. When lubrication, alignment, and load conditions all appear acceptable, end play is often the missing variable.
Why end play deserves closer attention
Motor end play may seem like a small detail, but its impact on bearing life is significant. When axial movement falls outside acceptable limits, bearings are forced to operate under conditions they were never designed for. In many cases, addressing end play is the difference between fixing symptoms and solving the actual problem.
