SINAMICS Drive Fault F0701: Overcurrent Trip and How to Address It
When a SINAMICS drive throws an F0701 fault, the clock starts ticking on an impending shutdown. This fault code signals an overcurrent trip, meaning the drive detected more current than it’s designed to handle. The cause could be anything from a motor pulling too much load to wiring issues or incorrect drive settings. Whatever the catalyst, ignoring the problem invites downtime and damage. Here’s how you can respond, to keep all systems fully functional.
What causes overcurrent trips?
When a drive hits its limit, the cause isn’t always obvious — but the consequences are. From overloaded motors to hidden wiring issues, pinpointing the culprit fast is the difference between a quick fix and a costly breakdown. Common causes of F0701 overcurrent trips include:
- Excessive load: The motor may be working beyond its capacity, pulling more current to compensate.
- Motor fault: Damaged windings or internal issues within the motor can spike current draw.
- Incorrect parameter settings: If the drive’s current limit is set too low, it may trip prematurely.
- Motor cable issues: Faulty or undersized cables increase resistance, causing high current flow.
- Power supply problems: Voltage fluctuations force the drive to draw extra current.
- Short circuit: A sudden current surge from a wiring short triggers immediate shutdown.
How to troubleshoot and resolve F0701
Troubleshooting an overcurrent trip is part science, part detective work. It’s about checking every link in the chain — from the motor to the power supply — until you find the weak spot:
- Check the load: Inspect machinery for jams or increased resistance. Reduce load if necessary.
- Inspect the motor: Look for overheating, damage, or noise. Compare motor ratings with drive settings.
- Review drive parameters: Verify and adjust current limit settings to match motor specifications.
- Examine motor cables: Inspect for wear, damage, or loose connections.
- Check the power supply: Measure voltage levels for stability and proper range.
- Look for faulty components: If the trip persists, internal drive components may need inspection or repair.
Always put safety first

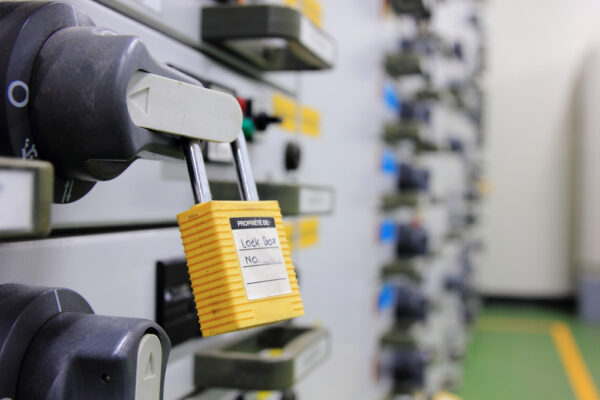

No repair is worth risking your safety. Before you reach for tools, power down, lock out/tag out (LOTO), and be completely certain that every move follows proper safety protocols:
- LOTO: Always power down and lock out equipment before opening panels or inspecting components.
- Follow the manual: Consult the SINAMICS drive documentation for fault codes and resolution steps.
- Know when to call an expert: Complex issues may require a Siemens technician or professional repair service.
Get expert drive fault diagnosis
Is your SINAMICS drive throwing codes? Now through the end of March, GES is offering 10% OFF single repairs and 15% OFF 3+ repairs on Siemens products! We’ll make sure your faulty drives get the resolution they deserve.
Get expert repairs for your SINAMICS drive
Noticing a persistent F0701 fault? That’s often a sign of deeper issues, from failing IGBTs to power module defects. The sooner you can address a known fault, the easier it is to get to the bottom of any problems — and prevent future ones. Don’t leave things to chance: Accurate diagnostics matter, and expert repairs save you time and money.
