Shelf Life: What Happens To a Spare Motor That Nobody’s Watching?

A motor fails, the spare comes off the shelf, and it either fails on startup or doesn’t make it through the first week. The assumption that a spare motor is in the same condition it was when it went into storage is one of the more expensive assumptions in industrial maintenance. The truth is that storage is an active degradation environment, and none of what’s happening to the motor is visible from the outside.

What happens to a motor in storage?

Four degradation mechanisms work against a motor sitting on a shelf:

1. Bearing corrosion and false brinelling develop when a stationary bearing holds a static load over time. Fretting corrosion forms at contact points between rolling elements and races. In humid environments, moisture migrates into bearing cavities and produces rust. Ambient vibration from nearby machinery accelerates both. A motor stored near an active production line can develop false brinelling within months.
2. Winding insulation absorbs moisture in uncontrolled storage environments. Motor windings are hygroscopic, and insulation resistance drops steadily in a nonclimate-controlled warehouse. A motor stored for two years without insulation testing may read well below the IEEE 43 minimum before it’s ever connected.
3. Bearing grease hardens and separates in storage. Base oil migrates out of the thickener over time, leaving a dry residue that provides no lubrication at startup. A motor that goes into storage with properly greased bearings and comes out two years later is going to start its first shift running metal on metal.
4. Shaft and surface corrosion develops on exposed machined surfaces without a protective coating. Rust particles from corroded surfaces contaminate bearing cavities on reinstallation, introducing abrasive debris at the worst possible moment.

What proper storage looks like

A storage program doesn’t require much, and a little attention goes a long way in keeping a motor ready for action. These are the practices that keep a spare motor in ready-to-deploy condition:

• Measure and record insulation resistance before the motor goes into storage.
• Rotate the shaft monthly to prevent bearing flat spots and redistribute grease.
• Keep windings 5–10°C above the ambient dew point using space heaters in the terminal box.
• Fill bearing cavities with compatible grease for long-term storage to displace moisture.

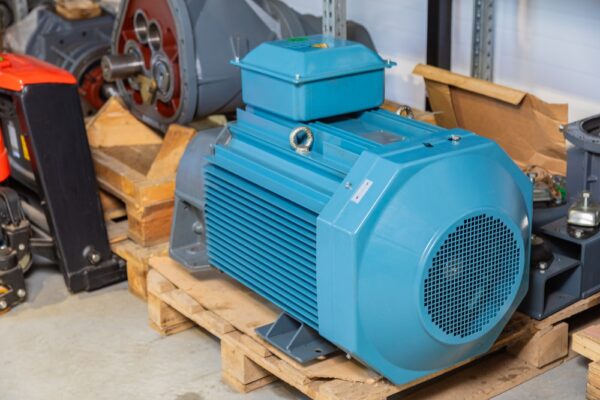

• Apply a rust inhibitor to machined surfaces and store on wooden pallets off concrete.
• Log every action, including rotation dates, IR readings, grease service, and inspection notes.

Before the spare goes back on the line

A motor coming out of storage isn’t automatically ready to install. Run a megohmmeter test first and compare the reading against the stored baseline. A drop of more than 50% warrants investigation before the motor is connected to anything. Inspect the bearing grease. If it has hardened or shows moisture contamination, repack before startup. Then run the motor uncoupled briefly and listen for bearing noise before coupling to the load. If it sounds clean, it’s ready.

A spare motor is only an asset if it’s ready

The storage degradation that disqualifies a motor as a reliable replacement happens slowly and without symptoms. A storage program that rotates shafts, monitors insulation resistance, and controls the environment costs little relative to the alternative, which is a spare that fails on day one of a critical installation, leaving the facility with no motor on the machine and none on the shelf.
