Servo Motor vs. Stepper Motor: Which Fits High-Precision Applications?

A servo motor checks its own position and corrects course. A stepper motor commands a position and trusts the load to keep up. That difference decides whether a load can vary, a tolerance can drift, or a missed step matters. The right motor depends on the job in front of it.

Servo motors vs. stepper motors

A servo motor pairs with an encoder that reports position back to the drive hundreds of times a second. The drive compares that reading against the command and adjusts in real time. That closed loop holds torque steady across the speed range and corrects for a load that pushes back unpredictably. Tuning takes extra setup, but the payoff is precision that holds even when the job doesn’t.

A stepper motor moves in fixed increments and never checks whether it arrived. Strong holding torque at low speed makes it dependable for light, predictable loads, and cheaper to run than a comparable servo. Push it too hard, though, and steps get lost with nothing in the system to notice. Without feedback, a stepper only works as well as the load lets it.

CNC machining

CNC cutting loads shift with material hardness and tool wear, and a missed position shows up as a bad part. Servo motors hold tolerance through that variation because the encoder catches drift before it compounds. Steppers can hold a light finishing pass, but most CNC work pushes past what open-loop control can guarantee.

Robotic arms

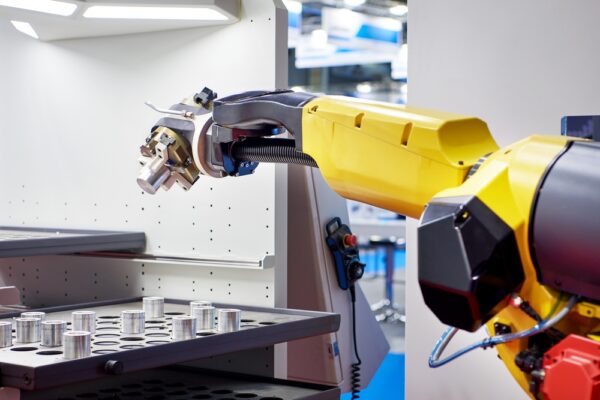

A robotic arm repeats the same move thousands of times a shift, often carrying a payload that changes from cycle to cycle. Servo motors keep that repeatability intact because the feedback loop corrects for the load rather than assuming it stays constant. Multiple servos also synchronize across axes in ways a stepper can’t match.

Packaging and indexing equipment

Packaging lines often move light, known loads through the same short distance. That’s the profile a stepper handles well, without the tuning or cost a servo would add. Servos earn their place on packaging lines running faster or carrying heavier product, but plenty of indexing stations never need one.

Pick-and-place assembly

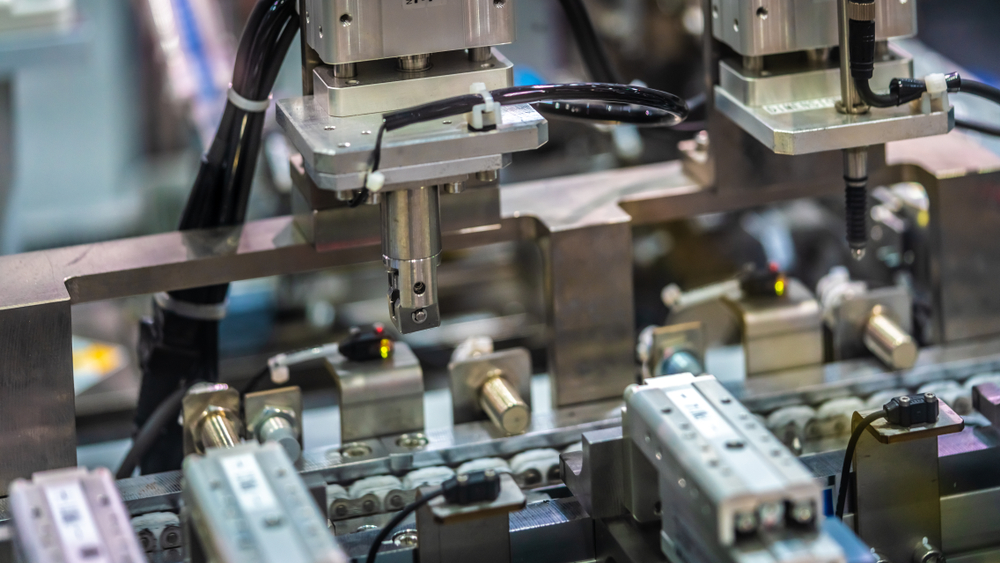

Pick-and-place work needs speed and placement accuracy at the same time. Servo motors handle that because the feedback loop keeps the position accurate while the arm accelerates and decelerates between points. A stepper can keep pace on slower lines, but speed is usually the first thing sacrificed.

Semiconductor manufacturing equipment

Semiconductor equipment positions components at tolerances measured in microns, where thermal drift and vibration matter as much as the initial command. Servo motors correct for both in real time since the encoder reports the actual position rather than the assumed position. A stepper’s fixed increments simply aren’t fine enough at that scale.

3D printing

Most 3D printers move a lightweight print head through known, repeatable paths with predictable resistance. That’s well within what a stepper handles reliably, which is why steppers dominate the category. Higher-end printers pushing speed and larger payloads are where a servo starts to make sense.

The rule of thumb

Every answer above comes down to the same test: does the load stay predictable, and can the tolerance absorb a little drift? A stepper handles predictable, lightly loaded work at a lower cost. A servo justifies its price when the load varies, the tolerance is tight, or a missed position turns into a bad part. Match the motor to the job.
