WEG Electric Corporation Electric Motors Model 30018XT3G449T Service, Sales, Replacement Parts
WEG Electric Corporation 30018XT3G449T WEG Electric Corporation Electric Motors Model 30018XT3G449T Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category General Purpose Motor
- Motor Phase 3 ph
- Motor Horsepower 300 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 460 V
- Frame Size 449T
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Duty Condition Type Explosion Proof
- Full Load Current 334.00 A
WEG Electric Corporation
- Model #:
- 30018XT3G449T
- Part #:
- 30018XT3G449T
- New/Surplus $ 63941
- Refurb. Price $44759 Save up to $ 19182
- Repair Price $31971 Save up to $ 31970
30018XT3G449T WEG Electric Corporation | BUY OR REPAIR
Overview

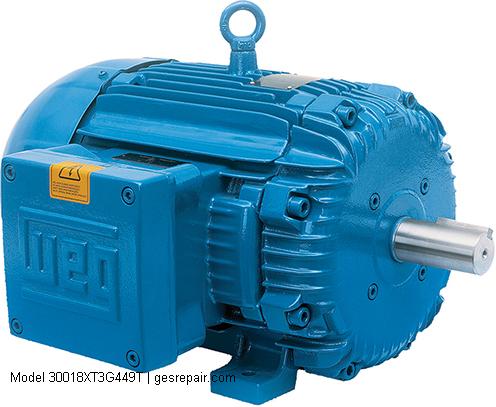

Explosion Proof / Hazardous Location Motor – 300 hp, 1800 rpm, 3 ph, 460 V, 449T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Explosion Proof
Features
- Motor Category General Purpose Motor
- Motor Phase 3 ph
- Motor Horsepower 300 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 460 V
- Frame Size 449T
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Duty Condition Type Explosion Proof
- Full Load Current 334.00 A
- Full Load Efficiency 96.20 %
- Volts @ Frequency Contact Global Electronic Services
- Description Keyword 300 hp
- Shaft Diameter 3.3750 in
- Overall Length C Dimension 55.00 in
- Service Factor 1.15
- Frame Material Cast Iron
- Insulation Class F
- IP Rating 55
- Standards Met CE CSA UL
- Temperature Code T3C
- Group & Class Class I - Groups C & D Class II - Groups F & G
- Harmonization Code 8501.53.8040
- Weight 3276.98 lbs
- Applications WEG Electric Corporation Electric Motors 30018XT3G449T
- Manufacturer Catalog Contact Global Electronic Services
- UPC_NO 7892304607268
- Mounting Type Foot
- Product Type Explosion Proof (Hazardous Location) Motors
