US Motors (Nidec) Electric Motors Model 1862H Service, Sales, Replacement Parts
US Motors (Nidec) 1862H US Motors (Nidec) Electric Motors Model 1862H Service, Sales, Replacement Parts
Product information
Key Features
- Motor Phase 1 ph
- Motor Horsepower 1/2 hp
- Synchronous Rpm 1200 rpm
- Country of Origin MEX
- Motor Supply Voltage 208-230 V
- Frame Size 48Y
- Enclosure Type TEAO (Totally Enclosed Air Over)
- Frequency Rating 60 Hz
- Base RPM 1075 rpm
- Duty Condition Type Continuous Air Over
US Motors (Nidec)
- Model #:
- 1862H
- Part #:
- 1862H
- New/Surplus $ 209
- Refurb. Price $146 Save up to $ 63
- Repair Price $105 Save up to $ 104
1862H US Motors (Nidec) | BUY OR REPAIR
Overview

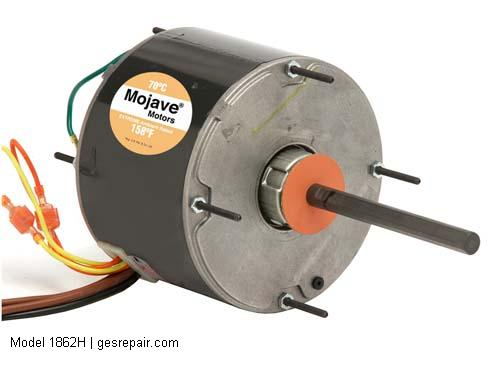

Condenser Fan Motor – 1/2 hp, 1200 rpm, 1 ph, 208-230 V, 48Y Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 1075 rpm Base, Band / Stud Mount, Continuous Air Over
Features
- Motor Phase 1 ph
- Motor Horsepower 1/2 hp
- Synchronous Rpm 1200 rpm
- Country of Origin MEX
- Motor Supply Voltage 208-230 V
- Frame Size 48Y
- Enclosure Type TEAO (Totally Enclosed Air Over)
- Frequency Rating 60 Hz
- Base RPM 1075 rpm
- Duty Condition Type Continuous Air Over
- Mounting Type Band / Stud
- Thermal Protection Automatic Reset
- Motor Poles 6
- Description US Motors (Nidec) Electric Motors 1862H
- Description Keyword 1/2 hp
- Overall Length C Dimension 11.8 in
- Service Factor 1.00
- Frame Material Steel
- Insulation Class F
- Weight 18.1 lbs
- Harmonization Code 8501.40.3040
- Manufacturer Upc Number 786382073794
- UPC_NO 786382073794
- Manufacturer Product Page Contact Global Electronic Services
- Model K055WEJ0626012B
- Motor Category Condenser Fan Motor
- Max Allowable Current 3.2 A
- Product Types AC Motors
- Torque 39.12 ft-lbs
- Opposite Drive End Bearing 6201
- Product Type General Purpose Motors
