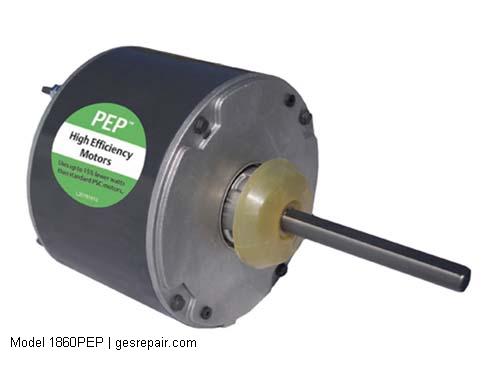

US Motors (Nidec) Electric Motors Model 1860PEP Service, Sales, Replacement Parts
US Motors (Nidec) 1860PEP US Motors (Nidec) Electric Motors Model 1860PEP Service, Sales, Replacement Parts
Product information
Key Features
- Motor Phase 1 ph
- Motor Horsepower 1/4 hp
- Synchronous Rpm 1200 rpm
- Country of Origin MEX
- Motor Supply Voltage 208-230 V
- Frame Size 48Y
- Enclosure Type TEAO (Totally Enclosed Air Over)
- Frequency Rating 50/60 Hz
- Base RPM 1125 rpm
- Duty Condition Type Continuous Air Over
US Motors (Nidec)
- Model #:
- 1860PEP
- Part #:
- 1860PEP
- New/Surplus $ 258
- Refurb. Price $181 Save up to $ 77
- Repair Price $129 Save up to $ 129
1860PEP US Motors (Nidec) | BUY OR REPAIR
Overview
Condenser Fan Motor – 1/4 hp, 1200 rpm, 1 ph, 208-230 V, 48Y Frame, TEAO (Totally Enclosed Air Over) Enclosure, 50/60 Hz, 1125 rpm Base, Band / Stud Mount, Continuous Air Over
Features
- Motor Phase 1 ph
- Motor Horsepower 1/4 hp
- Synchronous Rpm 1200 rpm
- Country of Origin MEX
- Motor Supply Voltage 208-230 V
- Frame Size 48Y
- Enclosure Type TEAO (Totally Enclosed Air Over)
- Frequency Rating 50/60 Hz
- Base RPM 1125 rpm
- Duty Condition Type Continuous Air Over
- Mounting Type Band / Stud
- Thermal Protection Automatic Reset
- Motor Poles 6
- Description Keyword 1/4 hp
- Overall Length C Dimension 9.56 in
- Service Factor 1.00
- Frame Material Steel
- Insulation Class F
- Weight 12.66 lbs
- Harmonization Code 8501.40.3040
- UPC_NO 786382094911
- Manufacturer Product Page Contact Global Electronic Services
- Model K055WRG0121012B
- Motor Category Condenser Fan Motor
- Max Allowable Current 1.4 A
- Product Types AC Motors
- Torque 19.49 ft-lbs
- Opposite Drive End Bearing Ball
- Product Type General Purpose Motors
