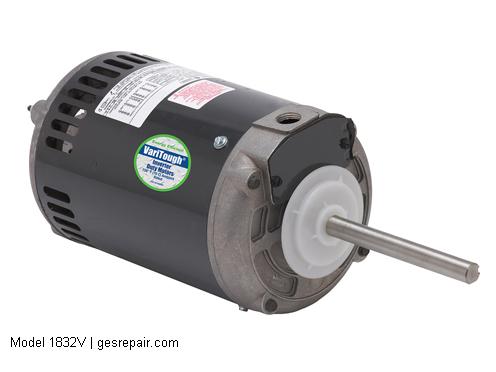

US Motors (Nidec) Electric Motors Model 1832V Service, Sales, Replacement Parts
US Motors (Nidec) 1832V US Motors (Nidec) Electric Motors Model 1832V Service, Sales, Replacement Parts
Product information
Key Features
- Motor Phase 3 ph
- Motor Horsepower 1-1/2 hp
- Synchronous Rpm 900 rpm
- Country of Origin MEX
- Motor Supply Voltage 208-230/460 V
- Frame Size 56HZ
- Enclosure Type OAO (Open Air-Over)
- Frequency Rating 60 Hz
- Base RPM 850 rpm
- Duty Condition Type Continuous Duty
US Motors (Nidec)
- Model #:
- 1832V
- Part #:
- 1832V
- New/Surplus $ 707
- Refurb. Price $495 Save up to $ 212
- Repair Price $354 Save up to $ 353
1832V US Motors (Nidec) | BUY OR REPAIR
Overview
Condenser Fan Motor – 1-1/2 hp, 900 rpm, 3 ph, 208-230/460 V, 56HZ Frame, OAO (Open Air-Over) Enclosure, 60 Hz, 850 rpm Base, Horizontal / Footless Mount, Continuous Duty
Features
- Motor Phase 3 ph
- Motor Horsepower 1-1/2 hp
- Synchronous Rpm 900 rpm
- Country of Origin MEX
- Motor Supply Voltage 208-230/460 V
- Frame Size 56HZ
- Enclosure Type OAO (Open Air-Over)
- Frequency Rating 60 Hz
- Base RPM 850 rpm
- Duty Condition Type Continuous Duty
- Mounting Type Horizontal / Footless
- Full Load Efficiency 74.0 %
- Motor Poles 8
- Description Keyword 1-1/2 hp
- Overall Length C Dimension 15.7 in
- NEMA Design Class B
- Service Factor 1.15
- Frame Material Steel
- Insulation Class F
- Standards Met EE NEMA Premium
- Weight 63 lbs
- Harmonization Code 8501.52.4000
- UPC_NO 786382100193
- Manufacturer Product Page Contact Global Electronic Services
- Model DS20
- Motor Category Condenser Fan Motor
- Max Allowable Current 3.1 A 6.2 to 6.6 A
- Product Types AC Motors
- Torque 9.5 ft-lbs
- Opposite Drive End Bearing 6203-2Z-J/C3
- Product Type General Purpose Motors
