US Motors (Nidec) Electric Motors Model 1830V Service, Sales, Replacement Parts
US Motors (Nidec) 1830V US Motors (Nidec) Electric Motors Model 1830V Service, Sales, Replacement Parts
Product information
Key Features
- Motor Phase 3 ph
- Motor Horsepower 1 hp
- Synchronous Rpm 900 rpm
- Country of Origin MEX
- Motor Supply Voltage 208-230/460 V
- Frame Size 56YZ
- Enclosure Type OAO (Open Air-Over)
- Frequency Rating 60 Hz
- Base RPM 825 rpm
- Duty Condition Type Continuous Air Over
US Motors (Nidec)
- Model #:
- 1830V
- Part #:
- 1830V
- New/Surplus $ 584
- Refurb. Price $409 Save up to $ 175
- Repair Price $292 Save up to $ 292
1830V US Motors (Nidec) | BUY OR REPAIR
Overview

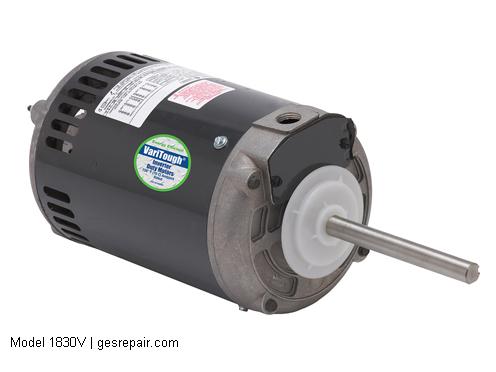

Condenser Fan Motor – 1 hp, 900 rpm, 3 ph, 208-230/460 V, 56YZ Frame, OAO (Open Air-Over) Enclosure, 60 Hz, 825 rpm Base, Band Mount, Continuous Air Over
Features
- Motor Phase 3 ph
- Motor Horsepower 1 hp
- Synchronous Rpm 900 rpm
- Country of Origin MEX
- Motor Supply Voltage 208-230/460 V
- Frame Size 56YZ
- Enclosure Type OAO (Open Air-Over)
- Frequency Rating 60 Hz
- Base RPM 825 rpm
- Duty Condition Type Continuous Air Over
- Mounting Type Band
- Thermal Protection Thermostat
- Full Load Efficiency 73.0 %
- Motor Poles 8-pole
- Description Keyword 1 hp
- Overall Length C Dimension 13.5 in
- NEMA Design Class B
- Service Factor 1.00
- Frame Material Steel
- Insulation Class F
- Weight 42.44 lbs
- Harmonization Code 8501.51.6040
- UPC_NO 786382080372
- Manufacturer Product Page Contact Global Electronic Services
- Model J063BKS0226015B
- Motor Category Condenser Fan Motor
- Max Allowable Current 2.6 A 5.2 A
- Product Types AC Motors
- Torque 101.7 ft-lbs
- Opposite Drive End Bearing Ball
- Product Type General Purpose Motors
