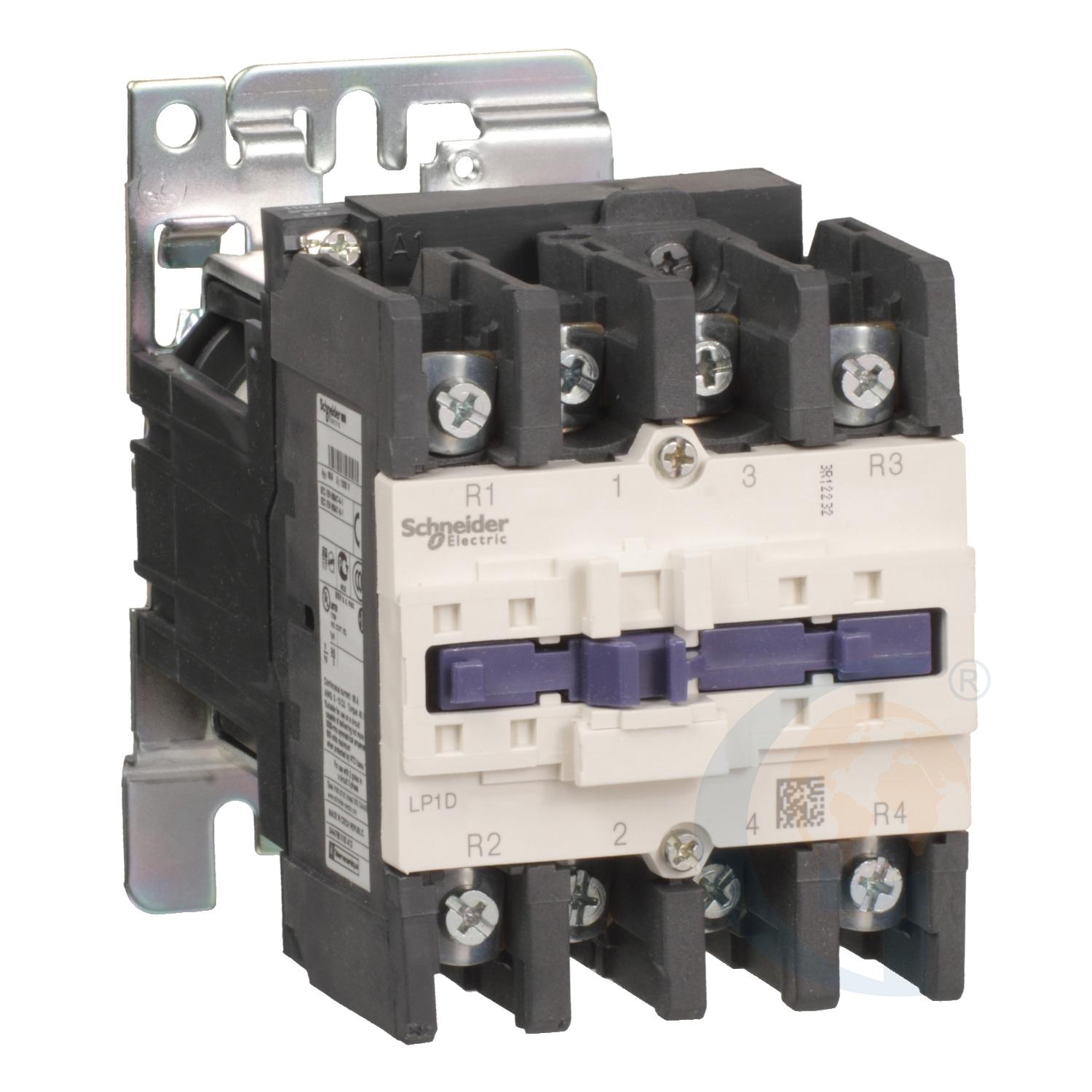

TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 125 A - 220 V DC coil

Schneider Electric LP1D800046MD TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 125 A - 220 V DC coil

Product information

Key Features
  • range TeSys
  • product name TeSys D
  • product or component type Contactor
  • device short name LP1D
  • contactor application Resistive load
Schneider Electric
Model #:
LP1D800046MD
Part #:
LP1D800046MD
LP1D800046MD Schneider Electric | BUY OR REPAIR

    Need a Quote Sent?

    Price Guarantee: We’ll beat any competitor’s repair price by at least 10%.

    We do not share personal information of our customers with anyone.

    Overview

    Low Voltage Products and Systems > Motor Starters and Protection Components > Contactors and Reversing Contactors > TeSys D > LP1D800046MD

    Features

    • range TeSys
    • product name TeSys D
    • product or component type Contactor
    • device short name LP1D
    • contactor application Resistive load
    • utilisation category AC-1
    • poles description 4P
    • power pole contact composition 4 NO
    • [Ue] rated operational voltage Power circuit: <= 1000 V AC 25...400 Hz Power circuit: <= 300 V DC
    • [Ie] rated operational current 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
    • [Uc] control circuit voltage 220 V DC
    • coil type DC standard
    • [Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
    • overvoltage category III
    • [Ith] conventional free air thermal current 125 A (at 60 °C) for power circuit
    • Irms rated making capacity 1100 A at 440 V for power circuit conforming to IEC 60947
    • rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
    • [Icw] rated short-time withstand current 135 A 40 °C - 10 min for power circuit 320 A 40 °C - 1 min for power circuit 640 A 40 °C - 10 s for power circuit 990 A 40 °C - 1 s for power circuit
    • associated fuse rating 200 A gG at <= 690 V coordination type 1 for power circuit 160 A gG at <= 690 V coordination type 2 for power circuit
    • average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
    • [Ui] rated insulation voltage Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Power circuit: 1000 V conforming to IEC 60947-4-1
    • electrical durability 0.8 Mcycles 125 A AC-1 at Ue <= 440 V
    • power dissipation per pole 12.5 W AC-1
    • Front cover Without
    • mounting support Plate Rail
    • standards CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
    • product certifications BV CCC CSA DNV EAC GL LROS (Lloyds register of shipping) UL
    • connections - terminals Control circuit: lugs-ring terminals (external diameter: 8 mm) Power circuit: lugs-ring terminals (external diameter: 17 mm) Power circuit: bars 1 cable(s) - busbar cross section: 3 x 16 mm
    • tightening torque Control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5 Control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5 Power circuit: 9 N.m - on lugs-ring terminals hexagonal screw head 10 mm M6 Power circuit: 9 N.m - on lugs-ring terminals - with screwdriver flat Ø 8 mm M6 Power circuit: 9 N.m - on bars - with screwdriver flat Ø 8 mm M6 Power circuit: 9 N.m - on bars hexagonal screw head 10 mm M6
    • operating time 6...20 ms opening 20...35 ms closing
    • safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
    • mechanical durability 4 Mcycles
    • maximum operating rate 3600 cyc/h 60 °C
    • coil technology Without built-in suppressor module
    • control circuit voltage limits 0.1...0.3 Uc (55 °C):drop-out DC 0.85...1.1 Uc (55 °C):operational DC
    • time constant 75 ms
    • inrush power in W 22 W at 20 °C
    • hold-in power consumption in W 22 W at 20 °C
