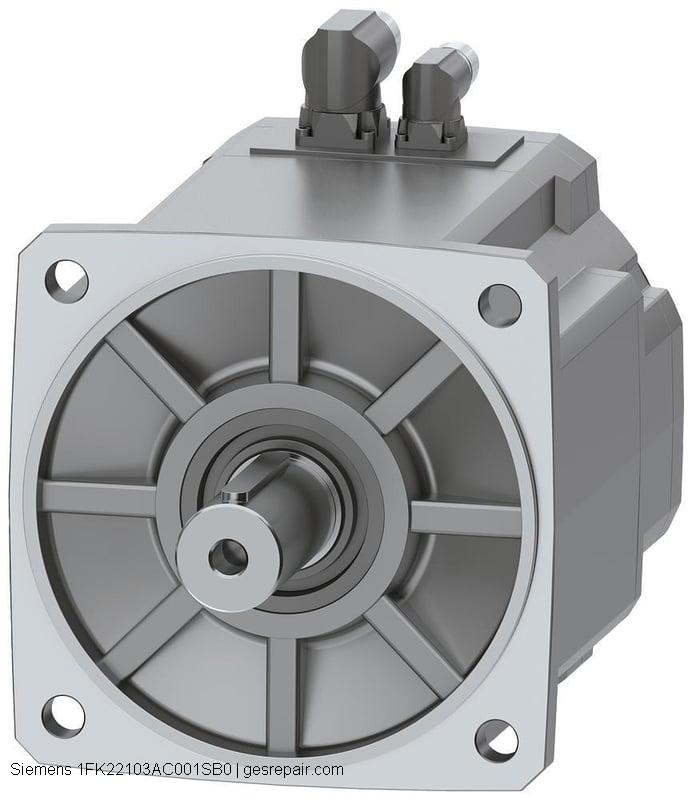

Siemens SIMOTICS S 1FK22103AC001SB0 1FK2 Compact Natural Cooling Servo Motor
Siemens 1FK22103AC001SB0 Siemens SIMOTICS S 1FK22103AC001SB0 1FK2 Compact Natural Cooling Servo Motor
Product information
Key Features
- Amperage Rating 15.5 A
- Dimensions 192 mm W
- Enclosure Type IP64
- Horsepower 3.35/6.03 hp
- Insulation Class Class B/F
- Mounting Type IM B5/IM V1/IM V3
- Series 1FK2
- Shaft Size 38 mm Dia x 80 mm H
- Special Features Permanent Magnet Synchronous
- Speed 2000 rpm
- Temperature Rating 5 to 104 deg F
- Torque Rating 30 N-m
- Type Compact Natural Cooling
- Voltage Rating 200 to 240/380 to 480 VAC
- Weight 21 lbs
- Sold as EACH
Siemens
- Model #:
- 1FK22103AC001SB0
- UPC #:
- 195125028708
- Part #:
- 1FK22103AC001SB0
- New/Surplus $ 5188
- Refurb. Price $3632 Save up to $ 1556
- Repair Price $2594 Save up to $ 2594
1FK22103AC001SB0 Siemens | BUY OR REPAIR
Overview
Siemens SIMOTICS S Servo Motor, Compact Natural Cooling, Series: 1FK2, Permanent Magnet Synchronous Special Features, 3.35/6.03 hp, 200 to 240/380 to 480 VAC, 15.5 A, 2000 rpm Speed, IP64 Enclosure, 38 mm Dia x 80 mm H Shaft, 30 N-m Torque, IM B5/IM V1/IM V3 Mounting, 5 to 104 deg F, Insulation Class: Class B/F, 192 mm W Dimensions
Features
- Amperage Rating 15.5 A
- Dimensions 192 mm W
- Enclosure Type IP64
- Horsepower 3.35/6.03 hp
- Insulation Class Class B/F
- Mounting Type IM B5/IM V1/IM V3
- Series 1FK2
- Shaft Size 38 mm Dia x 80 mm H
- Special Features Permanent Magnet Synchronous
- Speed 2000 rpm
- Temperature Rating 5 to 104 deg F
- Torque Rating 30 N-m
- Type Compact Natural Cooling
- Voltage Rating 200 to 240/380 to 480 VAC
- Weight 21 lbs
- Sold as EACH
