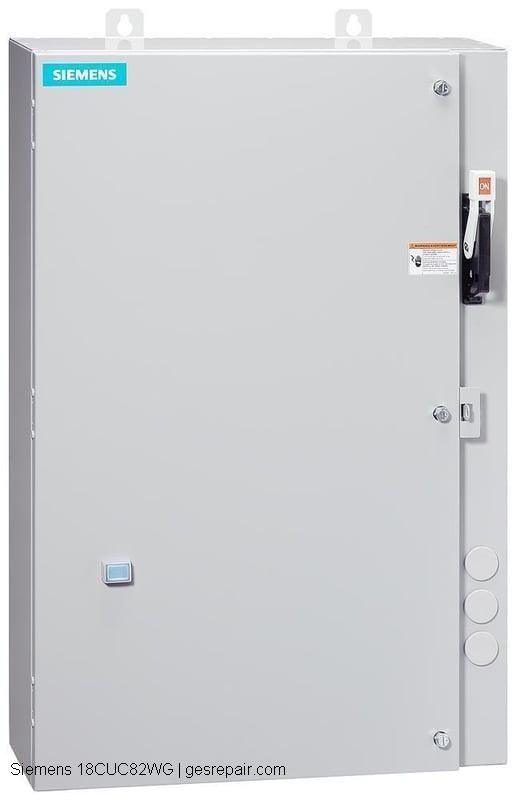

Siemens 18CUC82WG SZ 0 Class 18 Extra Wide Full Voltage Non-Reversing NEMA Combination Starter With 10 A Motor Circuit Protector
Siemens 18CUC82WG Siemens 18CUC82WG SZ 0 Class 18 Extra Wide Full Voltage Non-Reversing NEMA Combination Starter With 10 A Motor Circuit Protector
Product information
Key Features
- Amperage Rating 18 A
- Auxiliary Contact Rating 10 A at 600 VAC 5 A at 600 VDC
- Coil Voltage 190 to 220/220 to 240 VAC
- Connection Type Box Lug/Screw Terminal
- Dimensions 24 in H x 20 in W x 8 in D
- Enclosure Type NEMA 4/4X
- Frequency Rating 50/60 Hz
- Material 304 Stainless Steel
- Motor Power 2 hp 5 hp
- Number of Poles 3
- Operating Temperature -4 to 104 deg F
- Overload Relay Solid-State
- Phase 3
- Reset Type Automatic/Manual/Remote
- Setting 3 to 12 A
- Timing 19 to 29 ms On 10 to 24 ms Off
- Type SZ 0 Class 18 Extra Wide Full Voltage Non-Reversing
- Voltage Rating 600 VAC
- Operating Cycles 10000000 Cycles
- Weight 98.6 lbs
- Width 0.6 in
- Sold as EACH
Siemens
- Model #:
- 18CUC82WG
- UPC #:
- 662643817546
- Part #:
- 18CUC82WG
- New/Surplus $ 5194
- Refurb. Price $3636 Save up to $ 1558
- Repair Price $2597 Save up to $ 2597
18CUC82WG Siemens | BUY OR REPAIR
Overview
Siemens NEMA Combination Starter, SZ 0 Class 18 Extra Wide Full Voltage Non-Reversing, 600 VAC, 18 A, 50/60 Hz Frequency, 2 hp, 5 hp Motor, 190 to 220/220 to 240 VAC Coil, 3 Pole, Setting: 3 to 12 A, 19 to 29 ms On, 10 to 24 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph, Box Lug/Screw Terminal Connection, Solid-State Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 4/4X Enclosure, 304 Stainless Steel, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 24 in H x 20 in W x 8 in D Dimensions
Features
- Amperage Rating 18 A
- Auxiliary Contact Rating 10 A at 600 VAC 5 A at 600 VDC
- Coil Voltage 190 to 220/220 to 240 VAC
- Connection Type Box Lug/Screw Terminal
- Dimensions 24 in H x 20 in W x 8 in D
- Enclosure Type NEMA 4/4X
- Frequency Rating 50/60 Hz
- Material 304 Stainless Steel
- Motor Power 2 hp 5 hp
- Number of Poles 3
- Operating Temperature -4 to 104 deg F
- Overload Relay Solid-State
- Phase 3
- Reset Type Automatic/Manual/Remote
- Setting 3 to 12 A
- Timing 19 to 29 ms On 10 to 24 ms Off
- Type SZ 0 Class 18 Extra Wide Full Voltage Non-Reversing
- Voltage Rating 600 VAC
- Operating Cycles 10000000 Cycles
- Weight 98.6 lbs
- Width 0.6 in
- Sold as EACH
