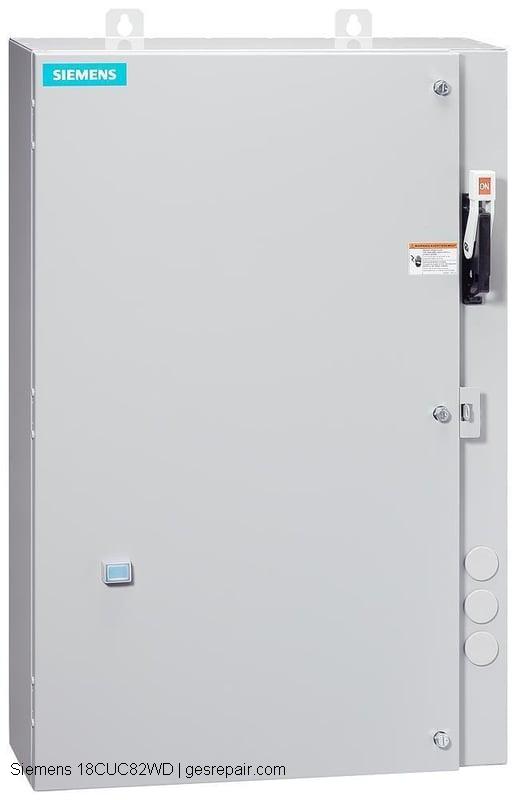

Siemens 18CUC82WD SZ 0 Class 18 Extra Wide Full Voltage Non-Reversing NEMA Combination Starter With 10 A Motor Circuit Protector
Siemens 18CUC82WD Siemens 18CUC82WD SZ 0 Class 18 Extra Wide Full Voltage Non-Reversing NEMA Combination Starter With 10 A Motor Circuit Protector
Product information
Key Features
- Amperage Rating 18 A
- Auxiliary Contact Rating 10 A at 600 VAC 5 A at 600 VDC
- Coil Voltage 200 to 208 VAC
- Connection Type Box Lug/Screw Terminal
- Dimensions 24 in H x 20 in W x 8 in D
- Enclosure Type NEMA 4/4X
- Frequency Rating 60 Hz
- Material 304 Stainless Steel
- Motor Power 2 hp 5 hp
- Number of Poles 3
- Operating Cycles 10000000 Cycles
- Operating Temperature -4 to 104 deg F
- Overload Relay Solid-State
- Phase 3
- Reset Type Automatic/Manual/Remote
- Setting 3 to 12 A
- Timing 19 to 29 ms On 10 to 24 ms Off
- Type SZ 0 Class 18 Extra Wide Full Voltage Non-Reversing
- Voltage Rating 600 VAC
- Width 7.2 in
- Sold as EACH
Siemens
- Model #:
- 18CUC82WD
- UPC #:
- 662643817515
- Part #:
- 18CUC82WD
- New/Surplus $ 5214
- Refurb. Price $3650 Save up to $ 1564
- Repair Price $2607 Save up to $ 2607
18CUC82WD Siemens | BUY OR REPAIR
Overview
Siemens NEMA Combination Starter, SZ 0 Class 18 Extra Wide Full Voltage Non-Reversing, 600 VAC, 18 A, 60 Hz Frequency, 2 hp, 5 hp Motor, 200 to 208 VAC Coil, 3 Pole, Setting: 3 to 12 A, 19 to 29 ms On, 10 to 24 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph, Box Lug/Screw Terminal Connection, Solid-State Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 4/4X Enclosure, 304 Stainless Steel, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 24 in H x 20 in W x 8 in D Dimensions
Features
- Amperage Rating 18 A
- Auxiliary Contact Rating 10 A at 600 VAC 5 A at 600 VDC
- Coil Voltage 200 to 208 VAC
- Connection Type Box Lug/Screw Terminal
- Dimensions 24 in H x 20 in W x 8 in D
- Enclosure Type NEMA 4/4X
- Frequency Rating 60 Hz
- Material 304 Stainless Steel
- Motor Power 2 hp 5 hp
- Number of Poles 3
- Operating Cycles 10000000 Cycles
- Operating Temperature -4 to 104 deg F
- Overload Relay Solid-State
- Phase 3
- Reset Type Automatic/Manual/Remote
- Setting 3 to 12 A
- Timing 19 to 29 ms On 10 to 24 ms Off
- Type SZ 0 Class 18 Extra Wide Full Voltage Non-Reversing
- Voltage Rating 600 VAC
- Width 7.2 in
- Sold as EACH
