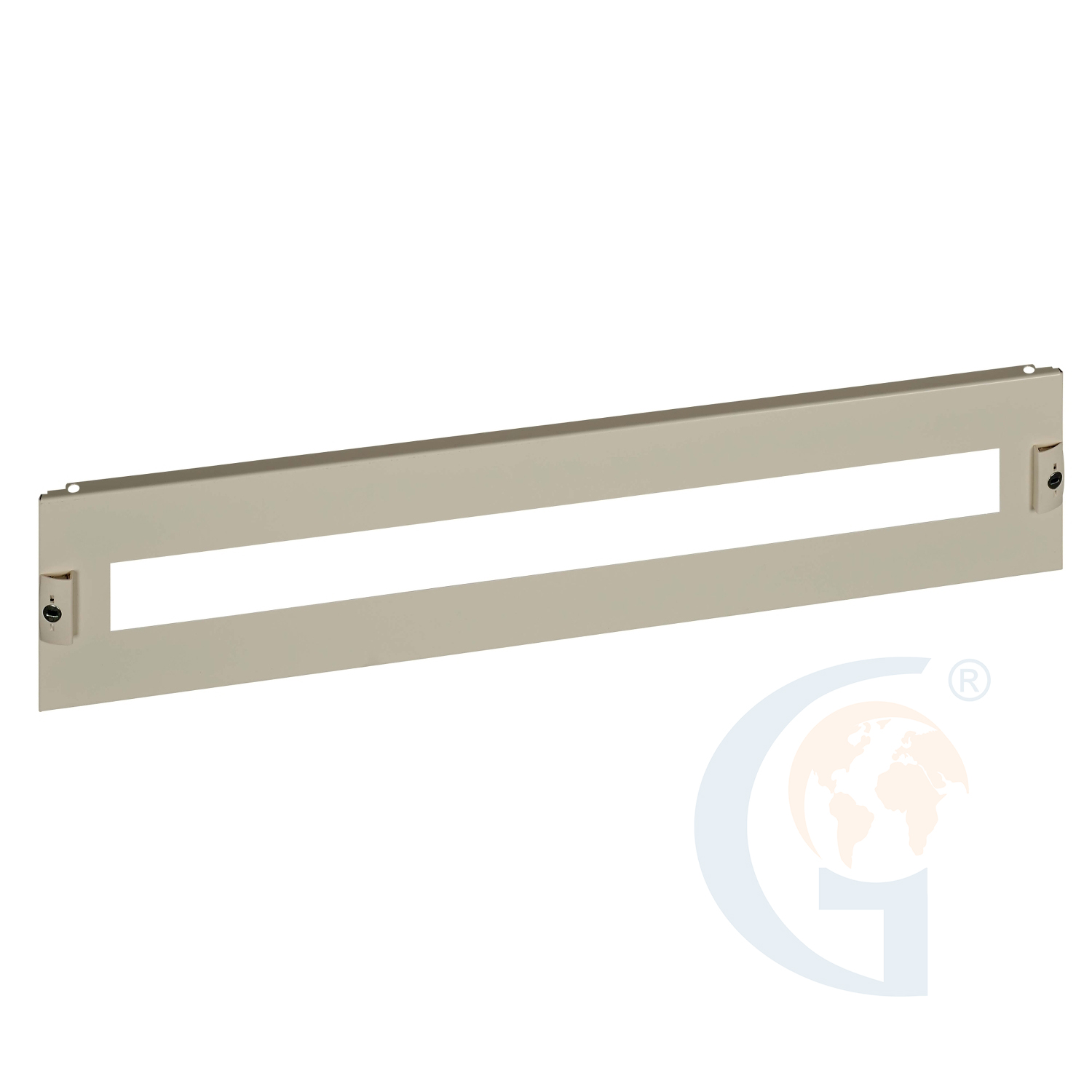

MODULAR FRONT PLATE W850 4M
Schneider Electric 03217 MODULAR FRONT PLATE W850 4M
Product information
Key Features
- range Prisma
- range compatibility Prisma G
- IP degree of protection IP30
- product or component type Front plate
- accessory / separate part category Installation accessory
Schneider Electric
- Model #:
- 03217
- Part #:
- 03217
03217 Schneider Electric | BUY OR REPAIR
Overview
Low Voltage Products and Systems > Switchboards and Enclosures > Panel building systems > Prisma G > 03217
Features
- range Prisma
- range compatibility Prisma G
- IP degree of protection IP30
- product or component type Front plate
- accessory / separate part category Installation accessory
- type of front plate Modular
- installed device Acti 9: fixed modular device Multi 9: fixed modular device Compact: fixed INS100 - control: direct front rotary handle - vertical installation Compact: fixed INS125 - control: direct front rotary handle - vertical installation Compact: fixed INS160 - control: direct front rotary handle - vertical installation Compact: fixed INS40 - control: direct front rotary handle - vertical installation Compact: fixed INS63 - control: direct front rotary handle - vertical installation
- poles description 4 x 3P: modular rail support: INS100 vertical installation 4 x 4P: modular rail support: INS100 vertical installation 4 x 3P: modular rail support: INS125 vertical installation 4 x 4P: modular rail support: INS125 vertical installation 4 x 3P: modular rail support: INS160 vertical installation 4 x 4P: modular rail support: INS160 vertical installation 4 x 3P: modular rail support: INS40 vertical installation 4 x 4P: modular rail support: INS40 vertical installation 4 x 3P: modular rail support: INS63 vertical installation 4 x 4P: modular rail support: INS63 vertical installation
- enclosure/cubicle description Floor-standing enclosure - width 850 mm
- connection position Direct connection
- 9 mm pitches 72
- number of 18 mm modules per row 36
- number of vertical modules [50 mm] 4
