MARATHON ELECTRIC Electric Motors Model 194000.00 Service, Sales, Replacement Parts

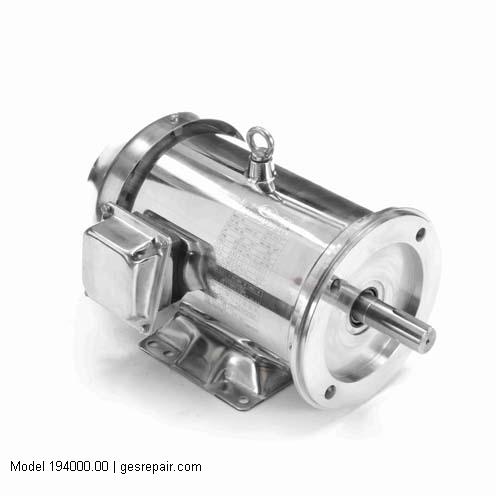

MARATHON ELECTRIC 194000.00 MARATHON ELECTRIC Electric Motors Model 194000.00 Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category General Purpose Motor (Stainless Steel)
- Motor Phase 3 ph
- Motor Horsepower 3 hp
- Synchronous Rpm 3600 rpm
- Motor Supply Voltage 208-230/460 V
- Frame Size 182TC
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1 Only
- Thermal Protection None
MARATHON ELECTRIC
- Model #:
- 194000.00
- Part #:
- 194000.00
- New/Surplus $ 3933
- Refurb. Price $2753 Save up to $ 1180
- Repair Price $1967 Save up to $ 1966
194000.00 MARATHON ELECTRIC | BUY OR REPAIR
Overview
General Purpose Washdown Duty Motor (Stainless Steel) – 3 hp, 3600 rpm, 3 ph, 208-230/460 V, 182TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz, C-Face Flange / Rigid Base Mount
Features
- Motor Category General Purpose Motor (Stainless Steel)
- Motor Phase 3 ph
- Motor Horsepower 3 hp
- Synchronous Rpm 3600 rpm
- Motor Supply Voltage 208-230/460 V
- Frame Size 182TC
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1 Only
- Thermal Protection None
- Electrical Type Squirrel Cage Inverter Rated
- KVA Code K
- Starting Method Line Or Inverter
- Full Load Efficiency 0.87 %
- Motor Orientation Horizontal
- Description MARATHON ELECTRIC Electric Motors 194000.00
- Motor Poles 2-pole
- Volts @ Frequency Contact Global Electronic Services
- Description Keyword 3 hp
- Shaft Type T
- Shaft Diameter 1.1250 in
- Overall Length C Dimension 16.97 in
- Warranty 3 Year Warranty
- Drive End Bearing Size 6306
- Opposite Drive End Bearing Size 6306
- Opposite Drive End Bearing Type Ball
- Type Of Bearing Ball
- NEMA Design Class B
- Service Factor 1.15
- Frame Material Stainless Steel
- Insulation Class F
- IP Rating 55
- Harmonization Code 8501.52.4000
- Weight 80.00 lbs
- Manufacturer Catalog Contact Global Electronic Services
- Manufacturer Catalog Number 194000.00
- Manufacturer Product Page Contact Global Electronic Services
- Manufacturer Upc Number 691720052686
- UPC_NO 691720052686
- Technical Specifications Contact Global Electronic Services
- 2D Drawing Contact Global Electronic Services
- Mounting Type Rigid Base
- Number Of Speeds 1
- Overload Protector No Protection
- Voltage 230/460 V
- Product Type Washdown Duty Motors
