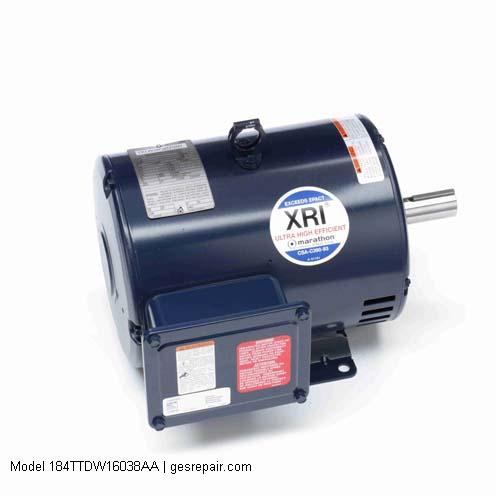

MARATHON ELECTRIC Electric Motors Model 184TTDW16038AA Service, Sales, Replacement Parts
MARATHON ELECTRIC 184TTDW16038AA MARATHON ELECTRIC Electric Motors Model 184TTDW16038AA Service, Sales, Replacement Parts
Product information
Key Features
- Motor Phase 3 ph
- Motor Horsepower 5 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 184
- Enclosure Type DP (Drip Proof)
- Frequency Rating 50/60 Hz
- Base RPM 1755 rpm
- Assembly Box Mounting F1 ONLY
- Duty Condition Type Continuous Duty
MARATHON ELECTRIC
- Model #:
- 184TTDW16038AA
- Part #:
- 184TTDW16038AA
- New/Surplus $ 1171
- Refurb. Price $820 Save up to $ 351
- Repair Price $586 Save up to $ 585
184TTDW16038AA MARATHON ELECTRIC | BUY OR REPAIR
Overview
General Purpose Motor – 5 hp, 1800 rpm, 3 ph, 230/460 V, 184 Frame, DP (Drip Proof) Enclosure, 50/60 Hz, 1755 rpm Base, Rigid Base Mount, Continuous Duty
Features
- Motor Phase 3 ph
- Motor Horsepower 5 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 184
- Enclosure Type DP (Drip Proof)
- Frequency Rating 50/60 Hz
- Base RPM 1755 rpm
- Assembly Box Mounting F1 ONLY
- Duty Condition Type Continuous Duty
- Mounting Type Rigid Base
- Thermal Protection Automatic
- Full Load Amps 12.6/6.3 A
- Full Load Current 13.60-12.60 / 6.30 A
- Electrical Type Squirrel Cage Induction Run
- Full Load Efficiency 89.5 %
- KVA Code J
- kW 3.70 kW
- Motor Orientation Horizontal
- Motor Poles 4
- Starting Method Across The Line
- Description Keyword 5 hp
- Shaft Diameter 0.8750 in
- Shaft Rotation Reversible
- Shaft Type T
- Motor Length Less Shaft 10.00 in
- Overall Length C Dimension 14.19 in
- Ambient Temperature Range 40 C
- NEMA Design Class B
- Service Factor 1.15
- Frame Material Rolled Steel
- Insulation Class F
- IP Rating 22
- Standards Met CE CSA UL
- Drive End Bearing Size 6206
- Type Of Bearing Ball
- Opposite Drive End Bearing Size 6205
- Weight 80 lbs
- Manufacturer Upc Number 722856011183
- Manufacturer Product Page Contact Global Electronic Services
- Technical Specifications 5 HP General Purpose Motor 3 phase 1800 RPM 230/460 V 184T Frame ODP
- Spec Sheet 5 HP General Purpose Motor 3 phase 1800 RPM 230/460 V 184T Frame ODP
- Wiring Diagram Contact Global Electronic Services
- 2D Drawing Contact Global Electronic Services
- Opposite Drive End Bearing Ball
- Product Type General Purpose Motors
