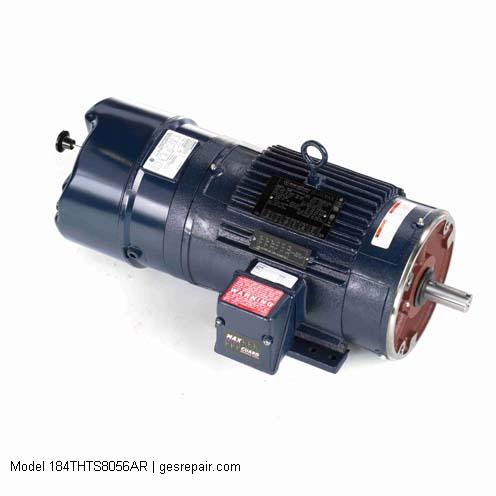

MARATHON ELECTRIC Electric Motors Model 184THTS8056AR Service, Sales, Replacement Parts
MARATHON ELECTRIC 184THTS8056AR MARATHON ELECTRIC Electric Motors Model 184THTS8056AR Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category Inverter Duty Motor
- Motor Phase 3 ph
- Motor Horsepower 5 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 184TC
- Enclosure Type TENV (Totally Enclosed Non-Ventilated)
- Frequency Rating 60 Hz
- Duty Condition Type Continuous Duty
- Mounting Type Rigid Base
MARATHON ELECTRIC
- Model #:
- 184THTS8056AR
- Part #:
- 184THTS8056AR
- New/Surplus $ 6213
- Refurb. Price $4349 Save up to $ 1864
- Repair Price $3107 Save up to $ 3106
184THTS8056AR MARATHON ELECTRIC | BUY OR REPAIR
Overview
Inverter Vector Duty Motor – 5 hp, 1800 rpm, 3 ph, 230/460 V, 184TC Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 60 Hz, Rigid Base Mount, Continuous Duty
Features
- Motor Category Inverter Duty Motor
- Motor Phase 3 ph
- Motor Horsepower 5 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 184TC
- Enclosure Type TENV (Totally Enclosed Non-Ventilated)
- Frequency Rating 60 Hz
- Duty Condition Type Continuous Duty
- Mounting Type Rigid Base
- Thermal Protection No
- Full Load Current 13.40 / 6.70 A 13.4/6.7 A
- Full Load Efficiency 88.5 %
- Ambient Temperature Range 40 C
- Motor Poles 4
- Description Keyword 5 hp
- Shaft Diameter 1.1250 in
- Overall Length C Dimension 25.58 in
- Type Of Bearing Ball
- NEMA Design Class INV
- Service Factor 1.00
- Frame Material Cast Iron
- Insulation Class F
- IP Rating 43
- Standards Met CE CSA
- Weight 161 lbs
- Applications Conveyors Cranes Hoists Industrial Machinery Machine Tools
- Manufacturer Product Page Contact Global Electronic Services
- Manufacturer Upc Number 722856025654
- Operation Manual Contact Global Electronic Services
- Technical Specifications 5 HP Variable Speed Motor 3 phase 1800 RPM 230/460 V 184TC Frame TENV
- Manufacturer Catalog Number Y989
- 2D Drawing Contact Global Electronic Services
- Wiring Diagram Contact Global Electronic Services
- Product Type Inverter Vector Duty Motors
