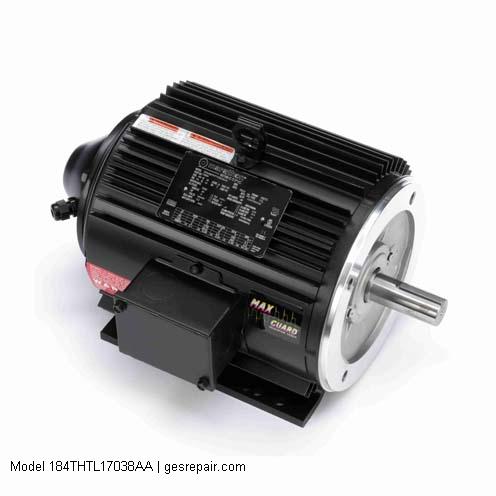

MARATHON ELECTRIC Electric Motors Model 184THTL17038AA Service, Sales, Replacement Parts
MARATHON ELECTRIC 184THTL17038AA MARATHON ELECTRIC Electric Motors Model 184THTL17038AA Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category Inverter Duty Motor
- Motor Phase 3 ph
- Motor Horsepower 5 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 184TC
- Enclosure Type TENV (Totally Enclosed Non-Ventilated)
- Frequency Rating 60 Hz
- Duty Condition Type Continuous Duty
- Mounting Type Rigid Base
MARATHON ELECTRIC
- Model #:
- 184THTL17038AA
- Part #:
- 184THTL17038AA
- New/Surplus $ 3133
- Refurb. Price $2193 Save up to $ 940
- Repair Price $1567 Save up to $ 1566
184THTL17038AA MARATHON ELECTRIC | BUY OR REPAIR
Overview
Inverter Vector Duty Motor – 5 hp, 1800 rpm, 3 ph, 230/460 V, 184TC Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 60 Hz, Rigid Base Mount, Continuous Duty
Features
- Motor Category Inverter Duty Motor
- Motor Phase 3 ph
- Motor Horsepower 5 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 184TC
- Enclosure Type TENV (Totally Enclosed Non-Ventilated)
- Frequency Rating 60 Hz
- Duty Condition Type Continuous Duty
- Mounting Type Rigid Base
- Thermal Protection No
- Full Load Current 14.00 / 7.00 A 14.0/7.0 A
- Full Load Efficiency 89.5 %
- Ambient Temperature Range 40 C
- Motor Poles 4
- Description Keyword 5 hp
- Shaft Diameter 1.1250 in
- Overall Length C Dimension 19.19 in
- Type Of Bearing Ball
- NEMA Design Class INV
- Service Factor 1.00
- Frame Material Aluminum
- Insulation Class H
- IP Rating 43
- Standards Met CE CSA
- Weight 112 lbs
- Manufacturer Catalog Contact Global Electronic Services
- Manufacturer Product Page Contact Global Electronic Services
- Manufacturer Upc Number 722856024619
- Operation Manual Contact Global Electronic Services
- Technical Specifications 5 HP Variable Speed Motor 3 phase 1800 RPM 230/460 V 184TC Frame TENV
- Manufacturer Catalog Number Y287
- 2D Drawing Contact Global Electronic Services
- Wiring Diagram Contact Global Electronic Services
- Product Type Inverter Vector Duty Motors
