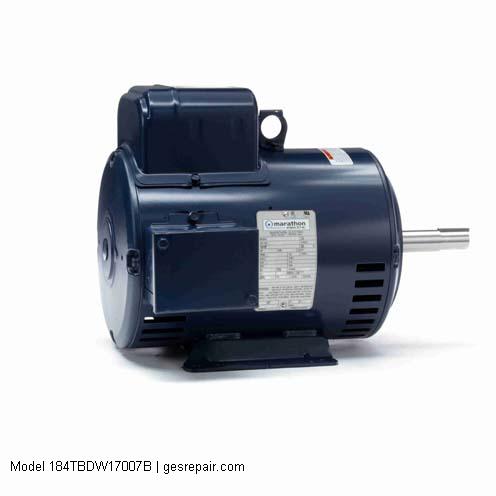

MARATHON ELECTRIC Electric Motors Model 184TBDW17007B Service, Sales, Replacement Parts
MARATHON ELECTRIC 184TBDW17007B MARATHON ELECTRIC Electric Motors Model 184TBDW17007B Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category Close Coupled Pump Motor
- Motor Phase 1 ph
- Motor Horsepower 5 hp
- Synchronous Rpm 3600 rpm
- Motor Supply Voltage 230 V
- Frame Size 184JM
- Enclosure Type DP (Drip Proof)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1 ONLY
- Duty Condition Type Continuous Duty
MARATHON ELECTRIC
- Model #:
- 184TBDW17007B
- Part #:
- 184TBDW17007B
- New/Surplus $ 1446
- Refurb. Price $1012 Save up to $ 434
- Repair Price $723 Save up to $ 723
184TBDW17007B MARATHON ELECTRIC | BUY OR REPAIR
Overview
Pump Motor – 5 hp, 3600 rpm, 1 ph, 230 V, 184JM Frame, DP (Drip Proof) Enclosure, 60 Hz, 3500 rpm Base, Rigid Base Mount, Continuous Duty
Features
- Motor Category Close Coupled Pump Motor
- Motor Phase 1 ph
- Motor Horsepower 5 hp
- Synchronous Rpm 3600 rpm
- Motor Supply Voltage 230 V
- Frame Size 184JM
- Enclosure Type DP (Drip Proof)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1 ONLY
- Duty Condition Type Continuous Duty
- Thermal Protection No
- Starting Method Across The Line
- Electrical Type Capacitor Start Capacitor Run
- kW 3.70 kW
- Full Load Current 22.00 A 22.0 A
- Full Load Efficiency 80 %
- Ambient Temperature Range 40 C
- Base RPM 3500 rpm
- KVA Code H
- Motor Orientation Horizontal
- Motor Poles 2
- Shaft Type JM
- Standards Met CE CSA UL
- Shaft Diameter 1.6250 in
- Shaft Rotation Selective Counterclockwise
- Motor Length Less Shaft 10.5
- Overall Length C Dimension 16.32 in
- Drive End Bearing Size Ball
- Opposite Drive End Bearing Size Ball
- Opposite Drive End Bearing Type 6205
- Type Of Bearing Ball
- NEMA Design Class NO DESIGN CODE
- Frame Material Rolled Steel
- Insulation Class F
- IP Rating 22
- Weight 80 lbs
- Overload Protector 1.15
- Manufacturer Upc Number 722856032645
- Manufacturer Catalog Number Z408A
- Manufacturer Product Page Contact Global Electronic Services
- Technical Specifications 5 HP Close-Coupled Pump Motor 1 phase 3600 RPM 230 V 184JM Frame ODP
- Wiring Diagram Contact Global Electronic Services
- 2D Drawing Contact Global Electronic Services
- Description Keyword 5 hp
- Mounting Type Rigid Base
- Product Type Pump Motors
