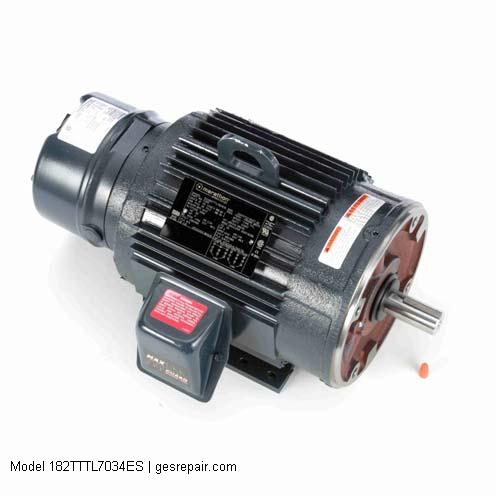

MARATHON ELECTRIC Electric Motors Model 182TTTL7034ES Service, Sales, Replacement Parts
MARATHON ELECTRIC 182TTTL7034ES MARATHON ELECTRIC Electric Motors Model 182TTTL7034ES Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category General Purpose Brake Motor
- Motor Phase 3 ph
- Motor Horsepower 3 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 182TC
- Enclosure Type TENV (Totally Enclosed Non-Ventilated)
- Frequency Rating 50/60 Hz
- Duty Condition Type Continuous Duty Inverter Duty
- Base RPM 1760 rpm
MARATHON ELECTRIC
- Model #:
- 182TTTL7034ES
- Part #:
- 182TTTL7034ES
- New/Surplus $ 2898
- Refurb. Price $2029 Save up to $ 869
- Repair Price $1449 Save up to $ 1449
182TTTL7034ES MARATHON ELECTRIC | BUY OR REPAIR
Overview
Blower/Fan Motor – 3 hp, 1800 rpm, 3 ph, 230/460 V, 182TC Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 50/60 Hz, 1760 rpm Base, Rigid Base Mount, Continuous Duty, Inverter Duty
Features
- Motor Category General Purpose Brake Motor
- Motor Phase 3 ph
- Motor Horsepower 3 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 182TC
- Enclosure Type TENV (Totally Enclosed Non-Ventilated)
- Frequency Rating 50/60 Hz
- Duty Condition Type Continuous Duty Inverter Duty
- Base RPM 1760 rpm
- Full Load Current 8.00 / 4.00 A
- Full Load Efficiency 90.20 %
- Electrical Type Squirrel Cage Inverter Rated
- KVA Code K
- Motor Orientation Horizontal
- Starting Method Line Or Inverter
- Volts @ Frequency Contact Global Electronic Services
- kW 2.20 kW
- Shaft Type T
- Shaft Diameter 1.1250 in
- Description Keyword 3 hp
- Drive End Bearing Ball
- Overall Length C Dimension 19.68
- Drive End Bearing Size 6207
- NEMA Design Class B
- Service Factor 1.15
- Frame Material Aluminum
- Assembly Box Mounting F1/F2 CAPABLE
- Insulation Class F
- Thermal Protection Manual
- IP Rating 43
- Standards Met CSA UL
- Type Of Bearing Ball
- Weight 100 lbs
- Manufacturer Product Page Contact Global Electronic Services
- Manufacturer Upc Number 722856027634
- 2D Drawing Contact Global Electronic Services
- Wiring Diagram Contact Global Electronic Services
- Manufacturer Catalog Number C405
- Mounting Type Rigid Base
- Number Of Speeds 1
- Overload Protector No
- Voltage 230/460
- Product Type Brake Motors
