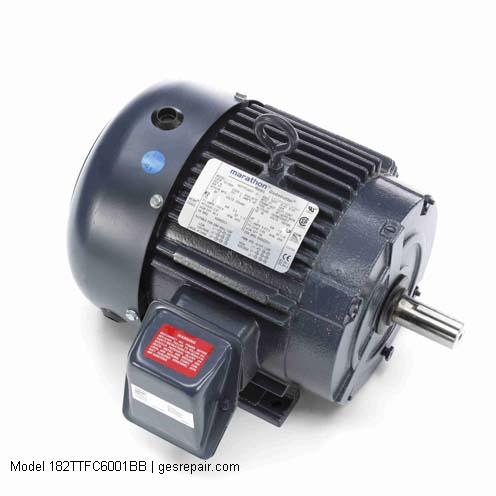

MARATHON ELECTRIC Electric Motors Model 182TTFC6001BB Service, Sales, Replacement Parts
MARATHON ELECTRIC 182TTFC6001BB MARATHON ELECTRIC Electric Motors Model 182TTFC6001BB Service, Sales, Replacement Parts
Product information
Key Features
- Motor Phase 3 ph
- Motor Horsepower 3 hp
- Synchronous Rpm 3600 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 182
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 50/60 Hz
- Base RPM 3532 rpm
- Assembly Box Mounting F1/F2 Capable
- Duty Condition Type Continuous Duty
MARATHON ELECTRIC
- Model #:
- 182TTFC6001BB
- Part #:
- 182TTFC6001BB
- New/Surplus $ 603
- Refurb. Price $422 Save up to $ 181
- Repair Price $302 Save up to $ 301
182TTFC6001BB MARATHON ELECTRIC | BUY OR REPAIR
Overview
General Purpose Motor – 3 hp, 3600 rpm, 3 ph, 230/460 V, 182 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz, 3532 rpm Base, Rigid Base Mount, Continuous Duty
Features
- Motor Phase 3 ph
- Motor Horsepower 3 hp
- Synchronous Rpm 3600 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 182
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 50/60 Hz
- Base RPM 3532 rpm
- Assembly Box Mounting F1/F2 Capable
- Duty Condition Type Continuous Duty
- Mounting Type Rigid Base
- Thermal Protection No
- Full Load Amps 7.6/3.8 A
- Full Load Current 7.60 / 3.80 A
- Electrical Type Squirrel Cage Induction Run
- Full Load Efficiency 86.5 %
- KVA Code H
- kW 2.20 kW
- Motor Orientation Horizontal
- Motor Poles 2
- Starting Method Across The Line
- Description Keyword 3 hp
- Shaft Diameter 1.1250 in
- Shaft Rotation Reversible
- Shaft Type T
- Overall Length C Dimension 14.80 in
- Ambient Temperature Range 40 C
- NEMA Design Class A
- Service Factor 1.15
- Frame Material Cast Iron
- Insulation Class F
- IP Rating 43
- Standards Met CE CSA UL
- Drive End Bearing Size 6206
- Type Of Bearing Ball
- Opposite Drive End Bearing Size 6205
- Weight 92 lbs
- Manufacturer Upc Number 722856001047
- Manufacturer Product Page Contact Global Electronic Services
- Technical Specifications 3 HP General Purpose Motor 3 phase 3600 RPM 230/460 V 182T Frame TEFC
- Spec Sheet 3 HP General Purpose Motor 3 phase 3600 RPM 230/460 V 182T Frame TEFC
- Wiring Diagram Contact Global Electronic Services
- 2D Drawing Contact Global Electronic Services
- Opposite Drive End Bearing Ball
- Product Type General Purpose Motors
