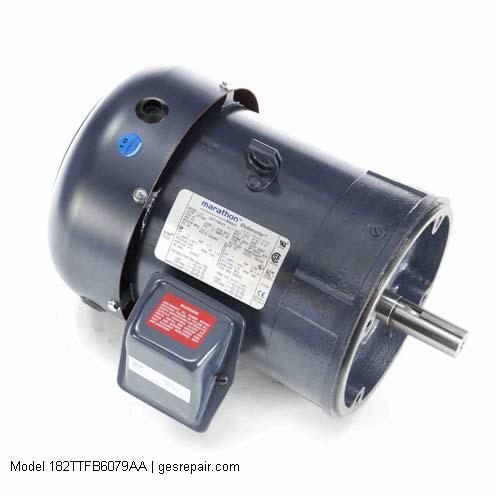

MARATHON ELECTRIC Electric Motors Model 182TTFB6079AA Service, Sales, Replacement Parts
MARATHON ELECTRIC 182TTFB6079AA MARATHON ELECTRIC Electric Motors Model 182TTFB6079AA Service, Sales, Replacement Parts
Product information
Key Features
- Motor Phase 3 ph
- Motor Horsepower 1-1/2 hp
- Synchronous Rpm 1200 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 182
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 50/60 Hz
- Base RPM 1185 rpm
- Assembly Box Mounting W6
- Duty Condition Type Continuous Duty
MARATHON ELECTRIC
- Model #:
- 182TTFB6079AA
- Part #:
- 182TTFB6079AA
- New/Surplus $ 687
- Refurb. Price $481 Save up to $ 206
- Repair Price $344 Save up to $ 343
182TTFB6079AA MARATHON ELECTRIC | BUY OR REPAIR
Overview
General Purpose Motor – 1-1/2 hp, 1200 rpm, 3 ph, 230/460 V, 182 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz, 1185 rpm Base, Round Mount, Continuous Duty
Features
- Motor Phase 3 ph
- Motor Horsepower 1-1/2 hp
- Synchronous Rpm 1200 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 182
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 50/60 Hz
- Base RPM 1185 rpm
- Assembly Box Mounting W6
- Duty Condition Type Continuous Duty
- Mounting Type Round
- Thermal Protection No
- Full Load Amps 4.8/2.4 A
- Full Load Current 4.80 / 2.40 A
- Electrical Type Squirrel Cage Induction Run
- Full Load Efficiency 87.5 %
- KVA Code J
- kW 1.10 kW
- Motor Orientation Shaft Down
- Motor Poles 6
- Starting Method Across The Line
- Description Keyword 1.50 hp
- Shaft Diameter 1.1250 in
- Shaft Rotation Reversible
- Shaft Type T
- Overall Length C Dimension 15.75 in
- Ambient Temperature Range 40 C
- NEMA Design Class B
- Service Factor 1.15
- Frame Material Rolled Steel
- Insulation Class F
- IP Rating 43
- Standards Met CE CSA UL
- Drive End Bearing Size 6206
- Type Of Bearing Ball
- Opposite Drive End Bearing Size 6205
- Weight 91 lbs
- Manufacturer Upc Number 722856001542
- Manufacturer Product Page Contact Global Electronic Services
- Technical Specifications 1.50 HP General Purpose Motor 3 phase 1200 RPM 230/460 V 182TCV Frame TEFC
- Spec Sheet 1.50 HP General Purpose Motor 3 phase 1200 RPM 230/460 V 182TCV Frame TEFC
- Wiring Diagram Contact Global Electronic Services
- 2D Drawing Contact Global Electronic Services
- Opposite Drive End Bearing Ball
- Product Type General Purpose Motors
