MARATHON ELECTRIC Electric Motors Model 182TTDW16048AA Service, Sales, Replacement Parts

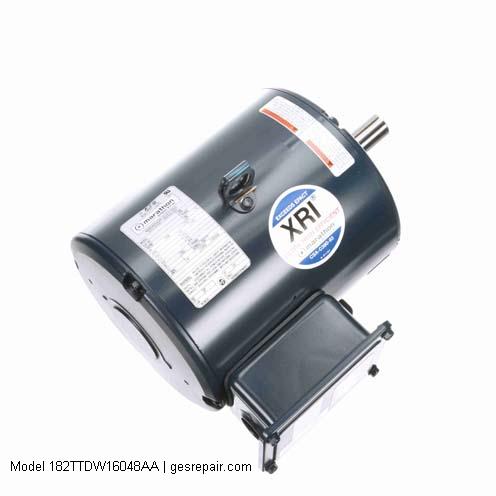

MARATHON ELECTRIC 182TTDW16048AA MARATHON ELECTRIC Electric Motors Model 182TTDW16048AA Service, Sales, Replacement Parts
Product information
Key Features
- Motor Phase 3 ph
- Motor Horsepower 3 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 200-208 V
- Frame Size 182
- Enclosure Type DP (Drip Proof)
- Frequency Rating 60 Hz
- Base RPM 1760 rpm
- Assembly Box Mounting F1/F2 Capable
- Duty Condition Type Continuous Duty
MARATHON ELECTRIC
- Model #:
- 182TTDW16048AA
- Part #:
- 182TTDW16048AA
- New/Surplus $ 1005
- Refurb. Price $704 Save up to $ 301
- Repair Price $503 Save up to $ 502
182TTDW16048AA MARATHON ELECTRIC | BUY OR REPAIR
Overview
General Purpose Motor – 3 hp, 1800 rpm, 3 ph, 200-208 V, 182 Frame, DP (Drip Proof) Enclosure, 60 Hz, 1760 rpm Base, Rigid Base Mount, Continuous Duty
Features
- Motor Phase 3 ph
- Motor Horsepower 3 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 200-208 V
- Frame Size 182
- Enclosure Type DP (Drip Proof)
- Frequency Rating 60 Hz
- Base RPM 1760 rpm
- Assembly Box Mounting F1/F2 Capable
- Duty Condition Type Continuous Duty
- Mounting Type Rigid Base
- Thermal Protection Automatic
- Full Load Amps 9.0-8.9 A
- Electrical Type Squirrel Cage Induction Run
- Full Load Efficiency 89.5 %
- KVA Code K
- kW 2.20 kW
- Motor Orientation Horizontal
- Motor Poles 4
- Starting Method Across The Line
- Volts @ Frequency Contact Global Electronic Services
- Description Keyword 3 hp
- Shaft Diameter 1.1250 in
- Shaft Rotation Reversible
- Shaft Type T
- Motor Length Less Shaft 9.00 in
- Overall Length C Dimension 13.19 in
- Ambient Temperature Range 40 C
- Opposite Drive End Bearing Type Ball
- NEMA Design Class B
- Service Factor 1.15
- Frame Material Rolled Steel
- Insulation Class F
- IP Rating 22
- Standards Met CE CSA UL
- Drive End Bearing Size 206
- Type Of Bearing Ball
- Opposite Drive End Bearing Size 205
- Weight 71 lbs
- Manufacturer Upc Number 722856011145
- Manufacturer Product Page Contact Global Electronic Services
- Technical Specifications 3 HP General Purpose Motor 3 phase 1800 RPM 200-208 V 182T Frame ODP
- Spec Sheet 3 HP General Purpose Motor 3 phase 1800 RPM 200-208 V 182T Frame ODP
- Wiring Diagram Contact Global Electronic Services
- 2D Drawing Contact Global Electronic Services
- Opposite Drive End Bearing Ball
- Product Type General Purpose Motors
