MARATHON ELECTRIC Electric Motors Model 182TTDB6008AA Service, Sales, Replacement Parts

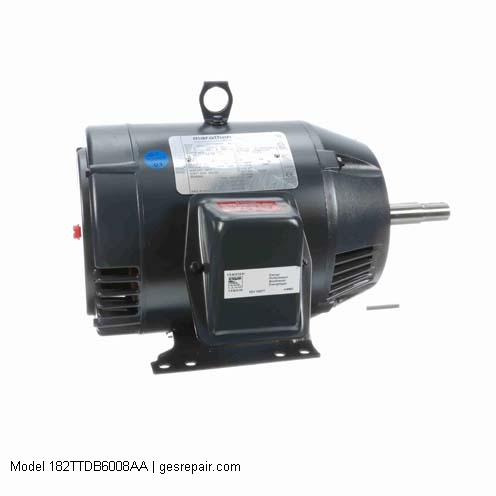

MARATHON ELECTRIC 182TTDB6008AA MARATHON ELECTRIC Electric Motors Model 182TTDB6008AA Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category Close Coupled Pump Motor
- Motor Phase 3 ph
- Motor Horsepower 5 hp
- Synchronous Rpm 3600 rpm
- Motor Supply Voltage 575 V
- Frame Size 182JM
- Enclosure Type DP (Drip Proof)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1 ONLY
- Duty Condition Type Continuous Duty
MARATHON ELECTRIC
- Model #:
- 182TTDB6008AA
- Part #:
- 182TTDB6008AA
- New/Surplus $ 1107
- Refurb. Price $775 Save up to $ 332
- Repair Price $554 Save up to $ 553
182TTDB6008AA MARATHON ELECTRIC | BUY OR REPAIR
Overview
Pump Motor – 5 hp, 3600 rpm, 3 ph, 575 V, 182JM Frame, DP (Drip Proof) Enclosure, 60 Hz, 3495 rpm Base, Rigid Base Mount, Continuous Duty
Features
- Motor Category Close Coupled Pump Motor
- Motor Phase 3 ph
- Motor Horsepower 5 hp
- Synchronous Rpm 3600 rpm
- Motor Supply Voltage 575 V
- Frame Size 182JM
- Enclosure Type DP (Drip Proof)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1 ONLY
- Duty Condition Type Continuous Duty
- Thermal Protection No
- Starting Method Line Or Inverter
- Electrical Type Squirrel Cage Inverter Rated
- kW 3.70 kW
- Full Load Current 4.7 A
- Full Load Efficiency 86.5 %
- Ambient Temperature Range 40 C
- Base RPM 3495 rpm
- KVA Code H
- Motor Orientation Horizontal
- Motor Poles 2
- Shaft Type JM
- Standards Met CE CSA UL
- Shaft Diameter 0.8750 in
- Shaft Rotation Reversible
- Motor Length Less Shaft 6.73
- Overall Length C Dimension 16.34 in
- Drive End Bearing Size Ball
- Opposite Drive End Bearing Size Ball
- Opposite Drive End Bearing Type 6205
- Type Of Bearing Ball
- NEMA Design Class B
- Frame Material Rolled Steel
- Insulation Class F
- IP Rating 22
- Weight 72 lbs
- Overload Protector 1.15
- Manufacturer Upc Number 722856000842
- Manufacturer Catalog Number GT0512
- Manufacturer Product Page Contact Global Electronic Services
- Technical Specifications 5 HP Close-Coupled Pump Motor 3 phase 3600 RPM 575 V 182JM Frame ODP
- Wiring Diagram Contact Global Electronic Services
- 2D Drawing Contact Global Electronic Services
- Description Keyword 5 hp
- Mounting Type Rigid Base
- Product Type Pump Motors
