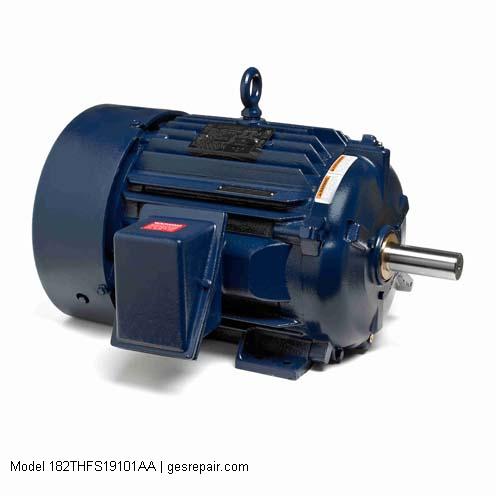

MARATHON ELECTRIC Electric Motors Model 182THFS19101AA Service, Sales, Replacement Parts
MARATHON ELECTRIC 182THFS19101AA MARATHON ELECTRIC Electric Motors Model 182THFS19101AA Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category Severe Duty Motors
- Motor Phase 3 ph
- Motor Horsepower 1 hp
- Description Keyword 1 hp
- Synchronous Rpm 900 rpm
- Motor Supply Voltage 460 V
- Frame Size 182T
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Duty Condition Type Continuous Duty
MARATHON ELECTRIC
- Model #:
- 182THFS19101AA
- Part #:
- 182THFS19101AA
- New/Surplus $ 3272
- Refurb. Price $2290 Save up to $ 982
- Repair Price $1636 Save up to $ 1636
182THFS19101AA MARATHON ELECTRIC | BUY OR REPAIR
Overview
Severe Duty Motor – 1 hp, 900 rpm, 3 ph, 460 V, 182T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 870 rpm Base, Rigid Base Mount, Continuous Duty
Features
- Motor Category Severe Duty Motors
- Motor Phase 3 ph
- Motor Horsepower 1 hp
- Description Keyword 1 hp
- Synchronous Rpm 900 rpm
- Motor Supply Voltage 460 V
- Frame Size 182T
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Duty Condition Type Continuous Duty
- Assembly Box Mounting F1/F2 Capable
- Base RPM 870 rpm
- Thermal Protection No
- Ambient Temperature Range 40 C
- Electrical Type Squirrel Cage Inverter Rated
- KVA Code G
- Starting Method Line Or Inverter
- kW 0.75 kW
- Drive End Bearing Ball
- Full Load Amps 1.9 A
- Full Load Efficiency 78.5 %
- Motor Orientation Horizontal
- Motor Poles 8
- Shaft Type T
- Shaft Diameter 1.1250 in
- Shaft Rotation Reversible
- Motor Length Less Shaft 5.75 in
- Overall Length C Dimension 15.19
- Drive End Bearing Size 6206
- Opposite Drive End Bearing Size Ball
- Opposite Drive End Bearing Type 6205
- Mounting Type Rigid Base
- NEMA Design Class B
- Service Factor 1.15
- Features MARATHON ELECTRIC Electric Motors 182THFS19101AA
- Frame Material Cast Iron
- Insulation Class F
- IP Rating 56
- Standards Met CE CSA UL
- Weight 81 lbs
- Manufacturer Product Page Contact Global Electronic Services
- Manufacturer Upc Number 722856020826
- 2D Drawing Contact Global Electronic Services
- Wiring Diagram Contact Global Electronic Services
- Product Type Severe Duty Motors
