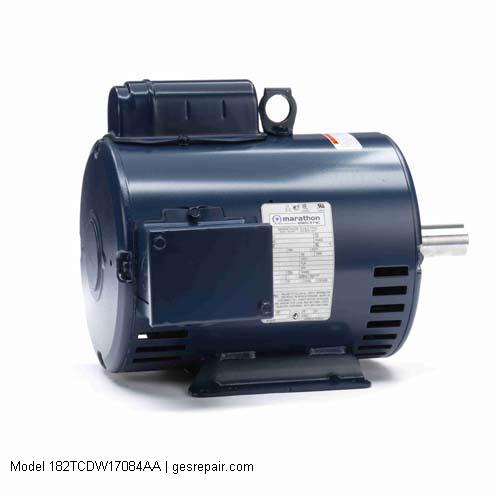

MARATHON ELECTRIC Electric Motors Model 182TCDW17084AA Service, Sales, Replacement Parts
MARATHON ELECTRIC 182TCDW17084AA MARATHON ELECTRIC Electric Motors Model 182TCDW17084AA Service, Sales, Replacement Parts
Product information
Key Features
- Motor Phase 1 ph
- Motor Horsepower 1 hp
- Synchronous Rpm 1200 rpm
- Motor Supply Voltage 115/230 V
- Frame Size 182
- Enclosure Type DP (Drip Proof)
- Frequency Rating 60 Hz
- Base RPM 1165 rpm
- Assembly Box Mounting F1 ONLY
- Duty Condition Type Continuous Duty
MARATHON ELECTRIC
- Model #:
- 182TCDW17084AA
- Part #:
- 182TCDW17084AA
- New/Surplus $ 991
- Refurb. Price $694 Save up to $ 297
- Repair Price $496 Save up to $ 495
182TCDW17084AA MARATHON ELECTRIC | BUY OR REPAIR
Overview
General Purpose Motor – 1 hp, 1200 rpm, 1 ph, 115/230 V, 182 Frame, DP (Drip Proof) Enclosure, 60 Hz, 1165 rpm Base, Rigid Base Mount, Continuous Duty
Features
- Motor Phase 1 ph
- Motor Horsepower 1 hp
- Synchronous Rpm 1200 rpm
- Motor Supply Voltage 115/230 V
- Frame Size 182
- Enclosure Type DP (Drip Proof)
- Frequency Rating 60 Hz
- Base RPM 1165 rpm
- Assembly Box Mounting F1 ONLY
- Duty Condition Type Continuous Duty
- Mounting Type Rigid Base
- Thermal Protection No
- Full Load Amps 15.6/7.8 A
- Full Load Current 15.60 / 7.80 A
- Electrical Type Capacitor Start Induction Run
- Full Load Efficiency 68 %
- KVA Code K
- kW 0.75 kW
- Motor Orientation Horizontal
- Motor Poles 6
- Number Of Speeds 1
- Starting Method Across The Line
- Description Keyword 1 hp
- Shaft Diameter 1.1250 in
- Shaft Rotation Selective Counterclockwise
- Shaft Type T
- Motor Length Less Shaft 10.00 in
- Ambient Temperature Range 40 C
- Opposite Drive End Bearing Type Ball
- NEMA Design Class L
- Service Factor 1.15
- Frame Material Rolled Steel
- Insulation Class B
- IP Rating 22
- Standards Met CE CSA UL
- Motor Design Code L
- Drive End Bearing Size 6206
- Type Of Bearing Ball
- Opposite Drive End Bearing Size 6205
- Overload Protector No Overload Protector
- Weight 83 lbs
- Manufacturer Upc Number 722856092182
- Manufacturer Product Page Contact Global Electronic Services
- Technical Specifications 1 HP General Purpose Motor 1 phase 1200 RPM 115/230 V 182T Frame ODP
- Storage Dimension Height 13.50 in
- Storage Dimension Width 18.31 in
- Storage Dimension Length 13.44 in
- Spec Sheet 1 HP General Purpose Motor 1 phase 1200 RPM 115/230 V 182T Frame ODP
- Wiring Diagram Contact Global Electronic Services
- 2D Drawing Contact Global Electronic Services
- Opposite Drive End Bearing Ball
- Product Type General Purpose Motors
