LEESON (RRX) Electric Motors Model 191560 Service, Sales, Replacement Parts

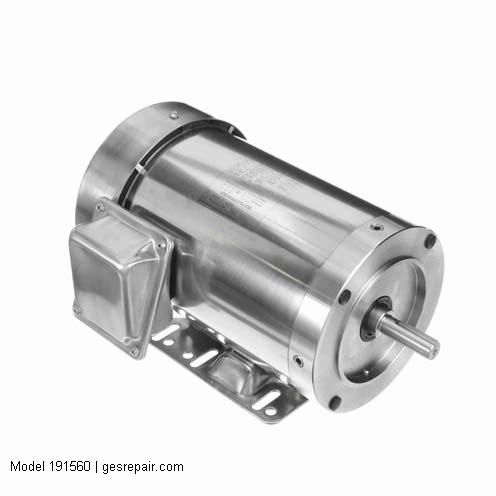

LEESON (RRX) 191560 LEESON (RRX) Electric Motors Model 191560 Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category General Purpose Motor (Stainless Steel)
- Motor Phase 3 ph
- Motor Horsepower 1-1/2 hp
- Synchronous Rpm 3600 rpm
- Motor Supply Voltage 208-230/460 V
- Frame Size 56HC
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1/F2 Capable
- Thermal Protection None
LEESON (RRX)
- Model #:
- 191560
- Part #:
- 191560
- New/Surplus $ 2432
- Refurb. Price $1702 Save up to $ 730
- Repair Price $1216 Save up to $ 1216
191560 LEESON (RRX) | BUY OR REPAIR
Overview
General Purpose Washdown Duty Motor (Stainless Steel) – 1-1/2 hp, 3600 rpm, 3 ph, 208-230/460 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz
Features
- Motor Category General Purpose Motor (Stainless Steel)
- Motor Phase 3 ph
- Motor Horsepower 1-1/2 hp
- Synchronous Rpm 3600 rpm
- Motor Supply Voltage 208-230/460 V
- Frame Size 56HC
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1/F2 Capable
- Thermal Protection None
- Electrical Type Squirrel Cage Inverter Rated
- KVA Code M
- Starting Method Line Or Inverter
- Full Load Efficiency 0.84 %
- Motor Orientation Horizontal
- Description LEESON (RRX) Electric Motors 191560
- Motor Poles 2-pole
- Volts @ Frequency Contact Global Electronic Services
- Description Keyword 1-1/2 hp
- Shaft Type NEMA 56
- Shaft Diameter 0.6250 in
- Overall Length C Dimension 13.77 in
- Warranty 3 Year Warranty
- Drive End Bearing Size 6205
- Opposite Drive End Bearing Size 6205
- Opposite Drive End Bearing Type Ball
- Type Of Bearing Ball
- NEMA Design Class B
- Service Factor 1.15
- Frame Material Stainless Steel
- Insulation Class F
- IP Rating 55
- Harmonization Code 8501.52.4000
- Weight 48.00 lbs
- Manufacturer Catalog Contact Global Electronic Services
- Manufacturer Catalog Number 191560.00
- Manufacturer Product Page Contact Global Electronic Services
- Manufacturer Upc Number 691720104026
- Technical Specifications Contact Global Electronic Services
- 2D Drawing Contact Global Electronic Services
- Mounting Type Rigid Base
- Number Of Speeds 1
- Overload Protector No Protection
- Voltage 230/460 V
- Product Type Washdown Duty Motors
