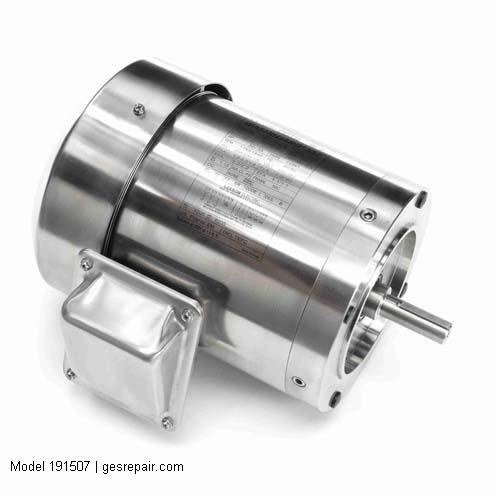

LEESON (RRX) Electric Motors Model 191507 Service, Sales, Replacement Parts
LEESON (RRX) 191507 LEESON (RRX) Electric Motors Model 191507 Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category General Purpose Motor (Stainless Steel)
- Motor Phase 3 ph
- Motor Horsepower 1/2 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 208-230/460 V
- Frame Size 56C
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1 Only
- Thermal Protection None
LEESON (RRX)
- Model #:
- 191507
- Part #:
- 191507
- New/Surplus $ 1985
- Refurb. Price $1390 Save up to $ 595
- Repair Price $993 Save up to $ 992
191507 LEESON (RRX) | BUY OR REPAIR
Overview
General Purpose Washdown Duty Motor (Stainless Steel) – 1/2 hp, 1800 rpm, 3 ph, 208-230/460 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz
Features
- Motor Category General Purpose Motor (Stainless Steel)
- Motor Phase 3 ph
- Motor Horsepower 1/2 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 208-230/460 V
- Frame Size 56C
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1 Only
- Thermal Protection None
- Electrical Type Squirrel Cage Inverter Rated
- KVA Code L
- Starting Method Line Or Inverter
- Full Load Efficiency 0.72 %
- Motor Orientation Horizontal
- Description LEESON (RRX) Electric Motors 191507
- Motor Poles 4-pole
- Volts @ Frequency Contact Global Electronic Services
- Description Keyword 1/2 hp
- Shaft Type NEMA 56
- Shaft Diameter 0.6250 in
- Overall Length C Dimension 11.20 in
- Warranty 1 Year Warranty
- Drive End Bearing Size 6205
- Opposite Drive End Bearing Size 6205
- Opposite Drive End Bearing Type Ball
- Type Of Bearing Ball
- NEMA Design Class B
- Service Factor 1.15
- Frame Material Stainless Steel
- Insulation Class F
- IP Rating 55
- Harmonization Code 8501.51.4040
- Weight 28.00 lbs
- Manufacturer Catalog Contact Global Electronic Services
- Manufacturer Catalog Number 191507.00
- Manufacturer Product Page Contact Global Electronic Services
- Manufacturer Upc Number 691720052822
- Technical Specifications Contact Global Electronic Services
- Mounting Type Round
- Number Of Speeds 1
- Overload Protector No Protection
- Voltage 230/460 V
- Product Type Washdown Duty Motors
