LEESON (RRX) Electric Motors Model 191475 Service, Sales, Replacement Parts

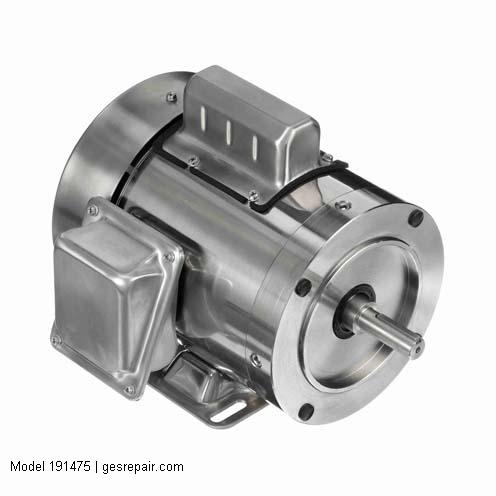

LEESON (RRX) 191475 LEESON (RRX) Electric Motors Model 191475 Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category General Purpose Motor (Stainless Steel)
- Motor Phase 1 ph
- Motor Horsepower 1/2 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 115/208-230 V
- Frame Size 56C
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1 Only
- Thermal Protection None
LEESON (RRX)
- Model #:
- 191475
- Part #:
- 191475
- New/Surplus $ 2322
- Refurb. Price $1625 Save up to $ 697
- Repair Price $1161 Save up to $ 1161
191475 LEESON (RRX) | BUY OR REPAIR
Overview
General Purpose Washdown Duty Motor (Stainless Steel) – 1/2 hp, 1800 rpm, 1 ph, 115/208-230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz
Features
- Motor Category General Purpose Motor (Stainless Steel)
- Motor Phase 1 ph
- Motor Horsepower 1/2 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 115/208-230 V
- Frame Size 56C
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1 Only
- Thermal Protection None
- Electrical Type Capacitor Start Induction Run
- KVA Code K
- Starting Method Across The Line
- Full Load Efficiency 0.61 %
- Motor Orientation Horizontal
- Description General Purpose Motor 0.50 HP 1 Ph 60 Hz 115/230 V 1800 RPM 56C Frame TEFC
- Motor Poles 4-pole
- Volts @ Frequency Contact Global Electronic Services
- Description Keyword 1/2 hp
- Shaft Type NEMA 56
- Shaft Diameter 0.6250 in
- Overall Length C Dimension 11.10 in
- Warranty 1 Year Warranty
- Drive End Bearing Size 6203
- Opposite Drive End Bearing Size 6203
- Opposite Drive End Bearing Type Ball
- Type Of Bearing Ball
- NEMA Design Class N
- Service Factor 1.15
- Frame Material Stainless Steel
- Insulation Class F
- IP Rating 55
- Harmonization Code 8501.40.4040
- Weight 32 lbs
- Manufacturer Catalog Contact Global Electronic Services
- Manufacturer Catalog Number 191475.00
- Manufacturer Product Page Contact Global Electronic Services
- Manufacturer Upc Number 691720399446
- Technical Specifications Contact Global Electronic Services
- 2D Drawing Contact Global Electronic Services
- Mounting Type C-Face Flange / Rigid Base
- Number Of Speeds 1
- Overload Protector No Protection
- Voltage 115/230 V
- Product Type Washdown Duty Motors
