LEESON (RRX) Electric Motors Model 191209 Service, Sales, Replacement Parts

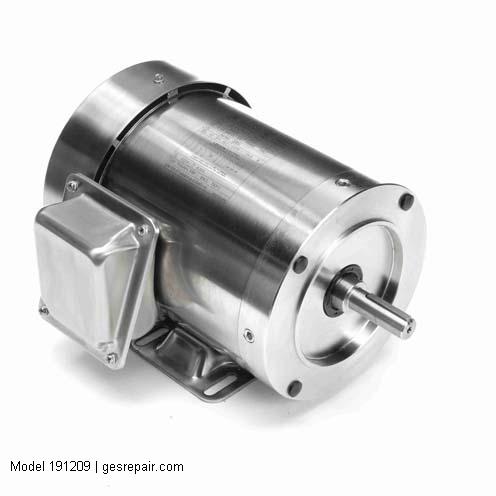

LEESON (RRX) 191209 LEESON (RRX) Electric Motors Model 191209 Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category General Purpose Motor (Stainless Steel)
- Motor Phase 3 ph
- Motor Horsepower 1 hp
- Synchronous Rpm 3600 rpm
- Motor Supply Voltage 208-230/460 V
- Frame Size 56HC
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1 Only
- Thermal Protection None
LEESON (RRX)
- Model #:
- 191209
- Part #:
- 191209
- New/Surplus $ 1960
- Refurb. Price $1372 Save up to $ 588
- Repair Price $980 Save up to $ 980
191209 LEESON (RRX) | BUY OR REPAIR
Overview
General Purpose Washdown Duty Motor (Stainless Steel) – 1 hp, 3600 rpm, 3 ph, 208-230/460 V, 56HC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz
Features
- Motor Category General Purpose Motor (Stainless Steel)
- Motor Phase 3 ph
- Motor Horsepower 1 hp
- Synchronous Rpm 3600 rpm
- Motor Supply Voltage 208-230/460 V
- Frame Size 56HC
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1 Only
- Thermal Protection None
- Electrical Type Squirrel Cage Induction Run
- KVA Code J
- Starting Method Across The Line
- Full Load Efficiency 0.80 %
- Motor Orientation Horizontal
- Description LEESON (RRX) Electric Motors 191209
- Motor Poles 2-pole
- Volts @ Frequency Contact Global Electronic Services
- Description Keyword 1 hp
- Shaft Type NEMA 56
- Shaft Diameter 0.6250 in
- Overall Length C Dimension 13.77 in
- Warranty 3 Year Warranty
- Drive End Bearing Size 6205
- Opposite Drive End Bearing Size 6205
- Opposite Drive End Bearing Type Ball
- Type Of Bearing Ball
- NEMA Design Class B
- Service Factor 1.15
- Frame Material Stainless Steel
- Insulation Class F
- IP Rating 55
- Harmonization Code 8501.52.4000
- Weight 38.85 41.50 lbs
- Manufacturer Catalog Contact Global Electronic Services
- Manufacturer Catalog Number 191209.00
- Manufacturer Product Page Contact Global Electronic Services
- Manufacturer Upc Number 691720308226
- Technical Specifications Contact Global Electronic Services
- 2D Drawing Contact Global Electronic Services
- Mounting Type Rigid Base
- Number Of Speeds 1
- Overload Protector No Protection
- Voltage 230/460 V
- Product Type Washdown Duty Motors
