circuit breaker Compact NS1250N – Micrologic 2.0 A – 1250 A – 4 poles 4t

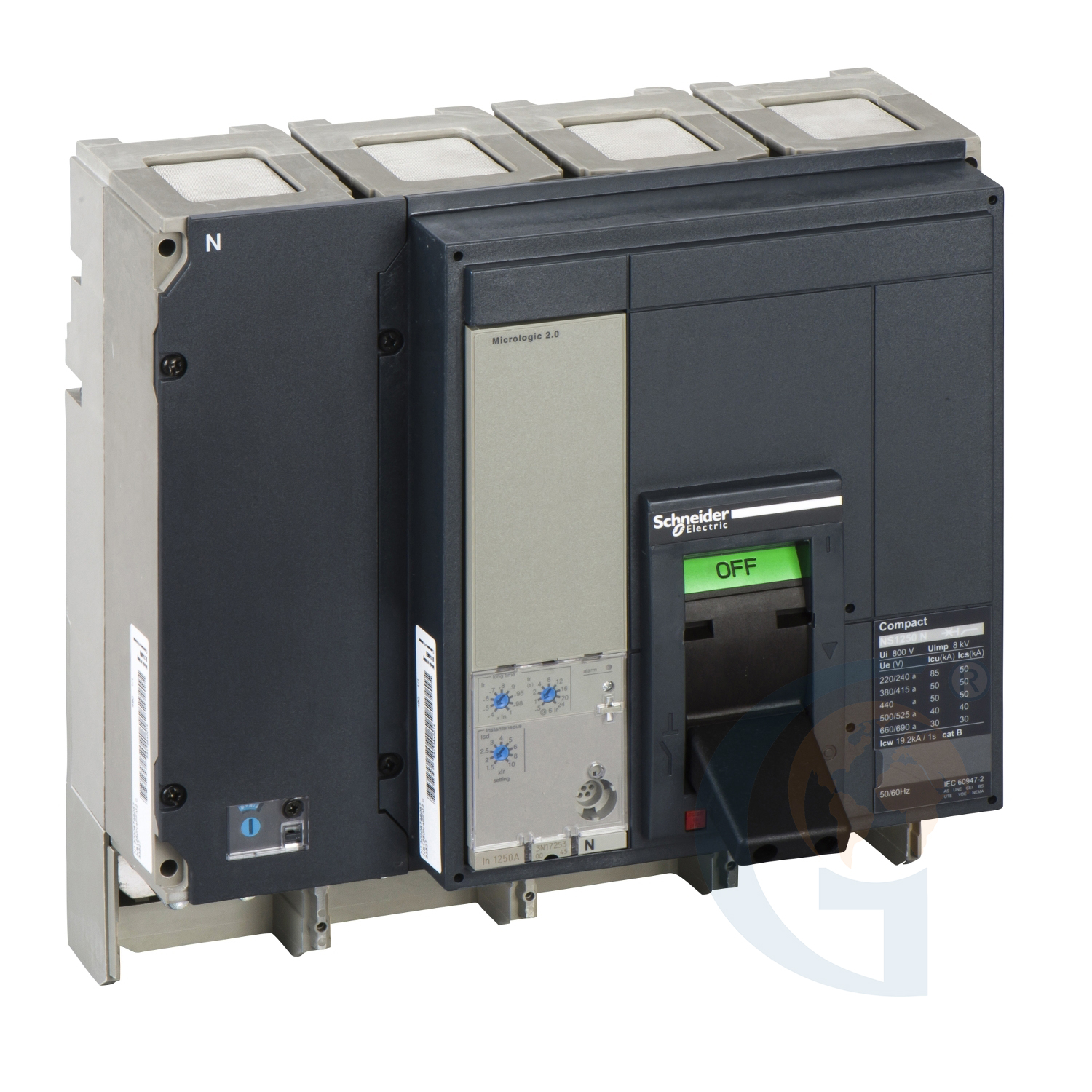

Schneider Electric 33257 circuit breaker Compact NS1250N – Micrologic 2.0 A – 1250 A – 4 poles 4t
Product information
Key Features
- range Compact
- range of product NS630b...1600
- product or component type Circuit breaker
- device short name Compact NS1250N
- device application Distribution
Schneider Electric
- Model #:
- 33257
- Part #:
- 33257
33257 Schneider Electric | BUY OR REPAIR
Overview
Low Voltage Products and Systems > Circuit Breakers and Switches > Molded Case Circuit Breakers – MCCBs > ComPact NS > 33257
Features
- range Compact
- range of product NS630b...1600
- product or component type Circuit breaker
- device short name Compact NS1250N
- device application Distribution
- poles description 4P
- protected poles description 4t
- neutral position Left
- network type AC
- breaking capacity code N
- suitability for isolation Yes conforming to IEC 60947-2
- utilisation category Category B
- trip unit name Micrologic 2.0 A
- trip unit technology Electronic
- trip unit rating 1250 A at 50 °C
- network frequency 50/60 Hz
- control type Toggle Rotary handle
- mounting mode Fixed
- mounting support Backplate
- upside connection Front
