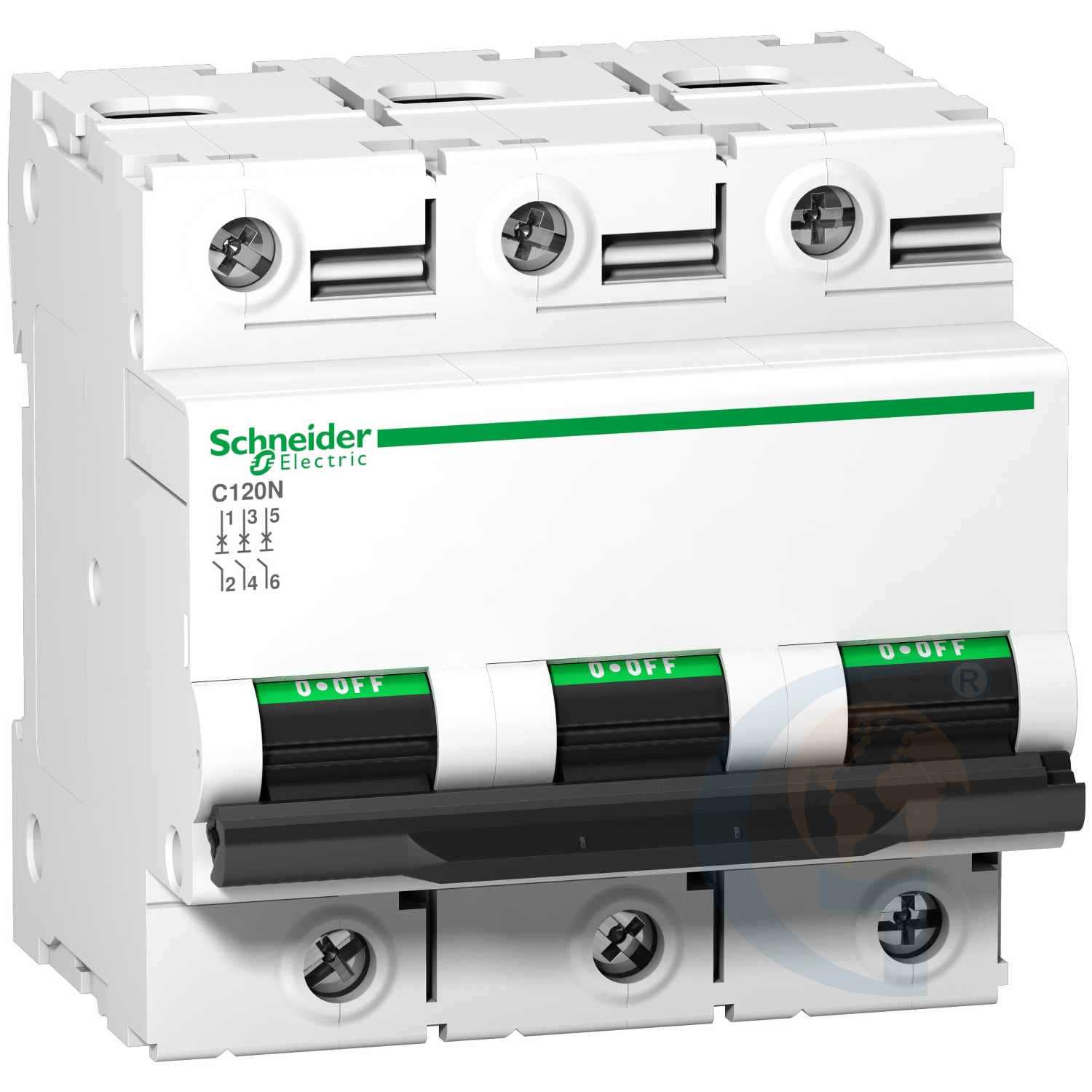

C120N – CIRCUIT BREAKER – 3P – 80A – D CURVE
Schneider Electric A9N18387 C120N – CIRCUIT BREAKER – 3P – 80A – D CURVE
Product information
Key Features
- range of product C120
- range Acti 9
- product name C120
- product or component type Miniature circuit-breaker
- device short name C120N
Schneider Electric
- Model #:
- A9N18387
- Part #:
- A9N18387
A9N18387 Schneider Electric | BUY OR REPAIR
Overview
Low Voltage Products and Systems > Electrical Protection and Control > Acti9 Miniature Circuit Breakers – MCBs > Acti9 C120 > A9N18387
Features
- range of product C120
- range Acti 9
- product name C120
- product or component type Miniature circuit-breaker
- device short name C120N
- device application Distribution
- poles description 3P
- number of protected poles 3
- [In] rated current 80 A at 30 °C
- network type AC
- trip unit technology Thermal-magnetic
- curve code D
- breaking capacity 10000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at <= 375 V DC conforming to EN/IEC 60947-2
- suitability for isolation Yes conforming to IEC 60947-2
- network frequency 50/60 Hz
- [Ue] rated operational voltage <= 375 V DC 380...415 V AC 50/60 Hz 220...240 V AC 50/60 Hz 440 V AC 50/60 Hz 230...400 V AC 50/60 Hz
- magnetic tripping limit 10...14 x In
- [Ics] rated service breaking capacity 7500 A 75 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz 7.5 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 15 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 10 kA 100 % conforming to EN/IEC 60947-2 - <= 375 V DC
- limitation class 3 conforming to EN/IEC 60947-2
