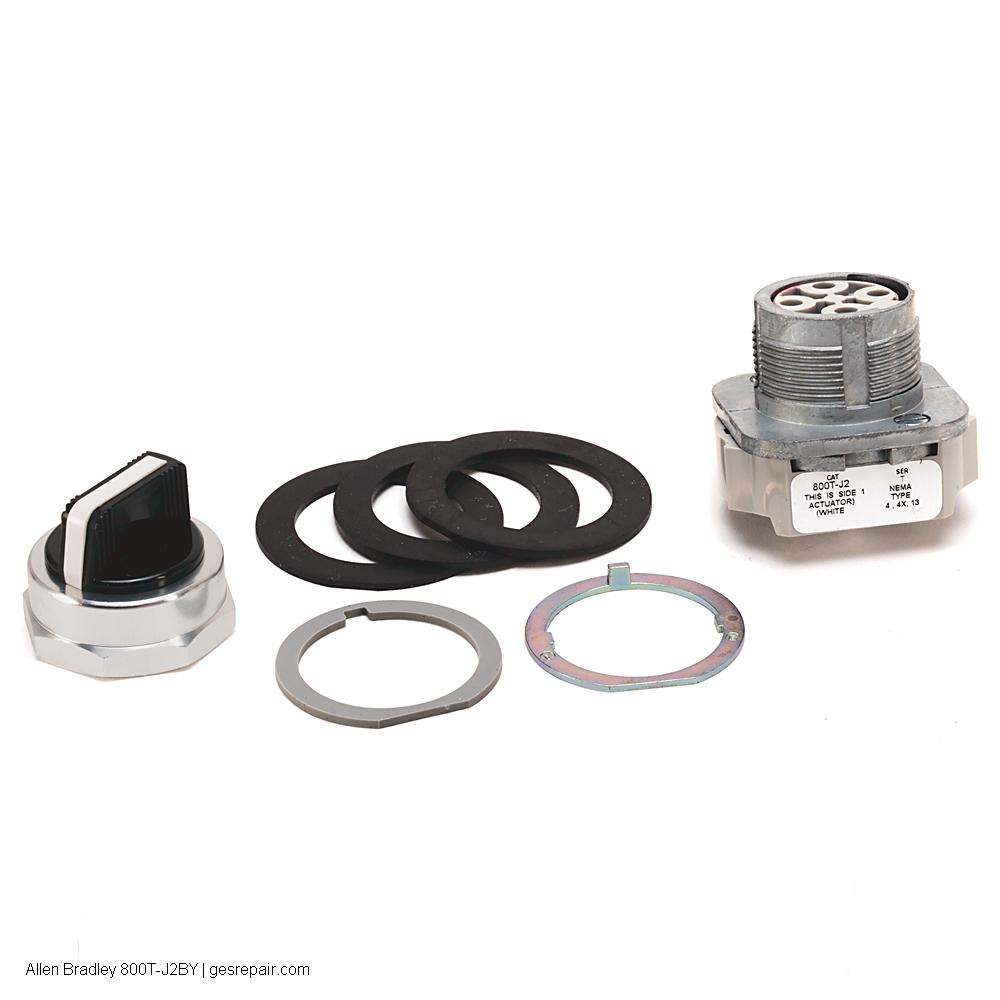

Allen-Bradley 800T-J2BY 30 mm Selector Switch Push Button
Allen Bradley 800T-J2BY Allen-Bradley 800T-J2BY 30 mm Selector Switch Push Button
Product information
Key Features
- Action Maintained
- Actuator 3 Position Selector Switch
- Amperage 10 Amp
- Bezel Material Metal
- Conductor Size 18-14 AWG
- Contact Configuration 2 NO; 2 NC Stackable Sealed Switch
- Head Type Standard Knob
- Mounting Type Hole
- Number of Positions 3
- Operating Cycles 1000000 Mechanical; 2000000 Electrical
- Size 30 mm
- Temperature Rating -40 to 131 degrees F
- Terminal Type Screw
- Type Watertight/Oiltight
- Voltage 300 VAC; 150 VDC
- Brand Allen-Bradley
- Sub Brand 800T PB
- 12-Digit UPC 611320616248
- Color White
- Environmental Conditions 50 - 95% Relative Humidity at 7 - 140 F
- Product UPC 61132061624
- Weight 0.5500 lb
Allen Bradley
- Model #:
- 800T-J2BY
- Part #:
- 800T-J2BY
- New/Surplus $ 515
- Refurb. Price $361 Save up to $ 154
- Repair Price $258 Save up to $ 257
800T-J2BY Allen Bradley | BUY OR REPAIR
Overview
Allen-Bradley 800T-J2BY 30 mm Selector Switch Push Button
Features
- Action Maintained
- Actuator 3 Position Selector Switch
- Amperage 10 Amp
- Bezel Material Metal
- Conductor Size 18-14 AWG
- Contact Configuration 2 NO; 2 NC Stackable Sealed Switch
- Head Type Standard Knob
- Mounting Type Hole
- Number of Positions 3
- Operating Cycles 1000000 Mechanical; 2000000 Electrical
- Size 30 mm
- Temperature Rating -40 to 131 degrees F
- Terminal Type Screw
- Type Watertight/Oiltight
- Voltage 300 VAC; 150 VDC
- Brand Allen-Bradley
- Sub Brand 800T PB
- 12-Digit UPC 611320616248
- Color White
- Environmental Conditions 50 - 95% Relative Humidity at 7 - 140 F
- Product UPC 61132061624
- Weight 0.5500 lb
