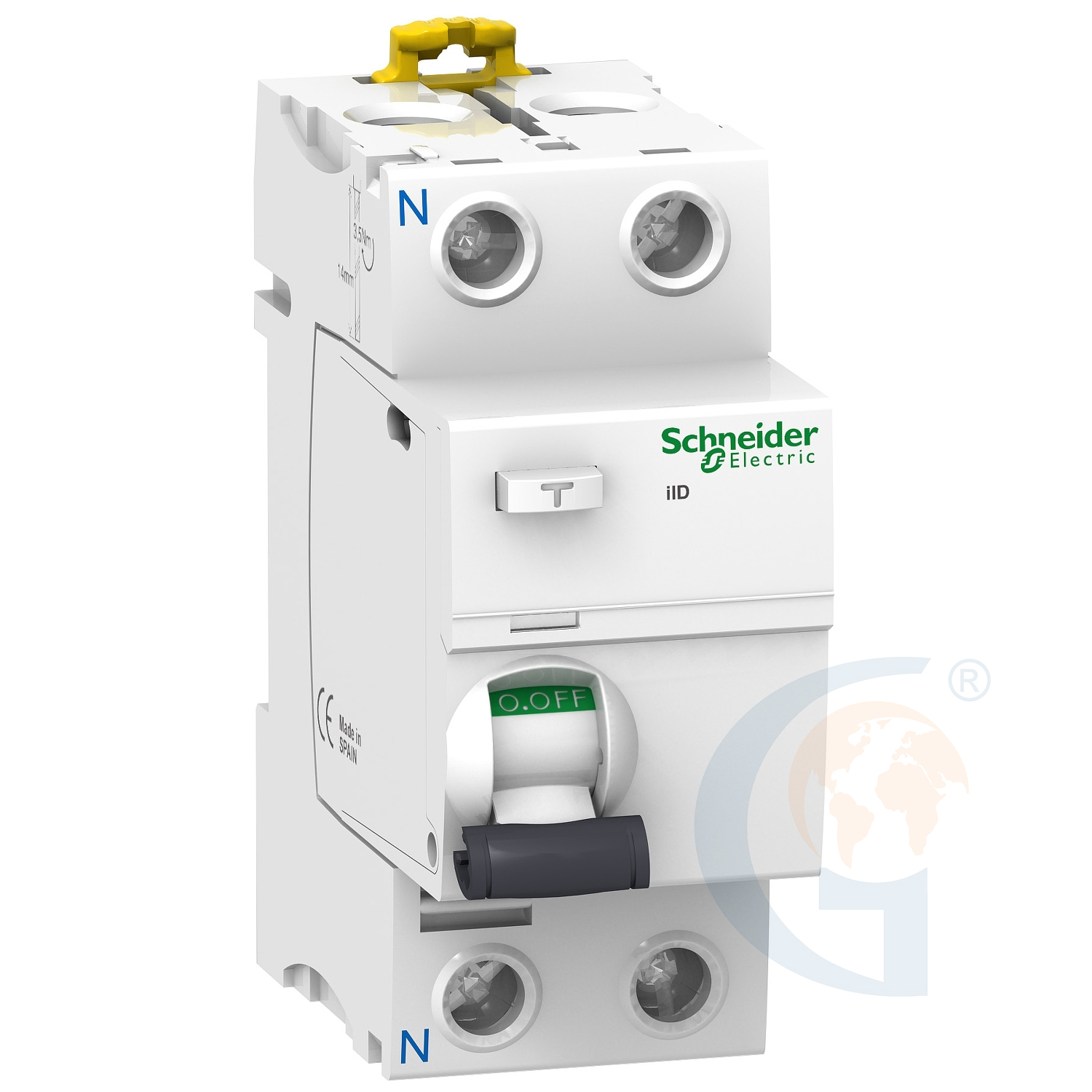

ACTI 9 IID – RCCB – 2P – 25A – 30MA – TYPE A
Schneider Electric A9R01225 ACTI 9 IID – RCCB – 2P – 25A – 30MA – TYPE A
Product information
Key Features
- range Acti 9
- product name Acti 9 iID
- product or component type Residual current circuit breaker (RCCB)
- device short name IID
- poles description 2P
Schneider Electric
- Model #:
- A9R01225
- Part #:
- A9R01225
A9R01225 Schneider Electric | BUY OR REPAIR
Overview
Low Voltage Products and Systems > Electrical Protection and Control > Acti9 Residual Current Devices – RCDs > Acti9 iID > A9R01225
Features
- range Acti 9
- product name Acti 9 iID
- product or component type Residual current circuit breaker (RCCB)
- device short name IID
- poles description 2P
- neutral position Left
- [In] rated current 25 A
- network type AC
- earth-leakage sensitivity 30 mA
- earth-leakage protection time delay Instantaneous
- earth-leakage protection class Type A
- device location in system Outgoer
- network frequency 50/60 Hz
- [Ue] rated operational voltage 220...240 V AC 50/60 Hz
- residual current tripping technology Voltage independent
- rated breaking and making capacity Idm 1500 A Im 1500 A
