Pneumatic Exhaust Mufflers: The Small Component That Can Stall a System

A pneumatic cylinder stalls mid-stroke. Valves get checked, lines get tested, and controls are reprogrammed, yet the problem remains. The real culprit might be a part no one thought to inspect: the exhaust muffler. It’s a small, inexpensive fitting that keeps noise down and oil mist out of the air, but when it clogs, it can quietly choke an entire system.

What an exhaust muffler does

Exhaust mufflers are simple by design. Threaded into valve or manifold ports, they diffuse the burst of pressurized air that escapes every time a valve shifts. This diffusion reduces noise and traps small particles or oil vapor before discharge.

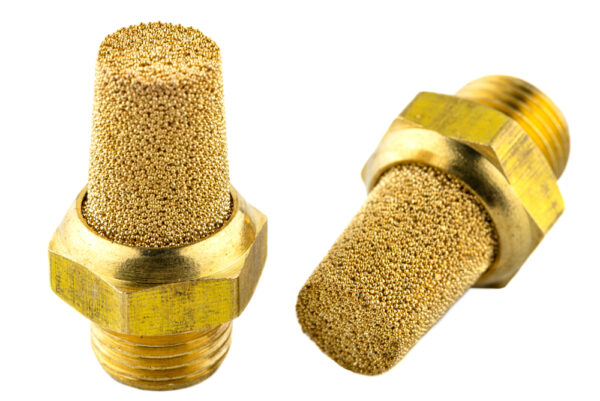

Most are made from sintered bronze or stainless steel — porous materials that balance airflow with filtration. In a new system, they perform flawlessly. But as oil carryover, rust, and airborne debris accumulate, those tiny pores begin to close. What should be a free-flowing exhaust path turns into a restriction that raises back pressure and disrupts the timing of every connected actuator.

In facilities that run hundreds of valves, even a few partially clogged mufflers can create widespread slowdowns that are hard to trace.

Why they clog and what it does to performance

Clogging isn’t random but rather the product of normal system wear combined with a few key operating factors:

• Oil mist from compressors condenses on the filter media and traps more debris with each cycle.
• Particulate and scale from piping embed themselves deep in the porous metal.
• Moisture and humidity create temporary blockages that turn permanent over time.

Once airflow drops, the effects cascade. Cylinders extend slower, valves stick longer, and machine timing drifts. Because the symptoms mimic valve failure, many mufflers are never identified as the root cause but simply replaced during trial-and-error troubleshooting.

Spotting a flow restriction before it stops the system

A restricted muffler doesn’t always look damaged, but subtle signs often appear first:

• Cylinders that move slower or stop short of full stroke
• A faint hiss that lingers after actuation
• Visible residue or dark oil stains on the muffler face

A quick diagnostic trick is to remove a suspect muffler and cycle the system. If speed or response returns immediately, back pressure was the issue. Some maintenance teams take it a step further, using differential pressure gauges to verify restriction and set threshold values for replacement.

The key is treating mufflers as consumables, not permanent fittings. Their low cost makes regular replacement far more efficient than reactive troubleshooting.

Keeping airflow clear

The easiest way to prevent clogging is to control what reaches the muffler in the first place. Proper upstream filtration and air drying dramatically reduce oil and water contamination. Adding muffler replacement to preventive maintenance schedules — particularly on high-cycle machines — helps sustain consistent response times across the system. In the end, a few best practices go a long way:

• Use high-quality air filters before critical valves.
• Replace mufflers proactively based on duty cycles or pressure-drop testing.
• Document replacements to identify patterns that indicate upstream contamination.
• Consider high-flow or self-cleaning mufflers in heavy-duty applications.

A minor part with major influence

Exhaust mufflers rarely get attention until something stops working, yet their impact on pneumatic performance is immediate and measurable. Keeping them clean and free-flowing preserves the precision timing that keeps automated systems running reliably — proof that even the smallest components can decide whether production moves or stands still.
